Out of Stock
Banks PowerSKU: BSD-BAN-35148-B

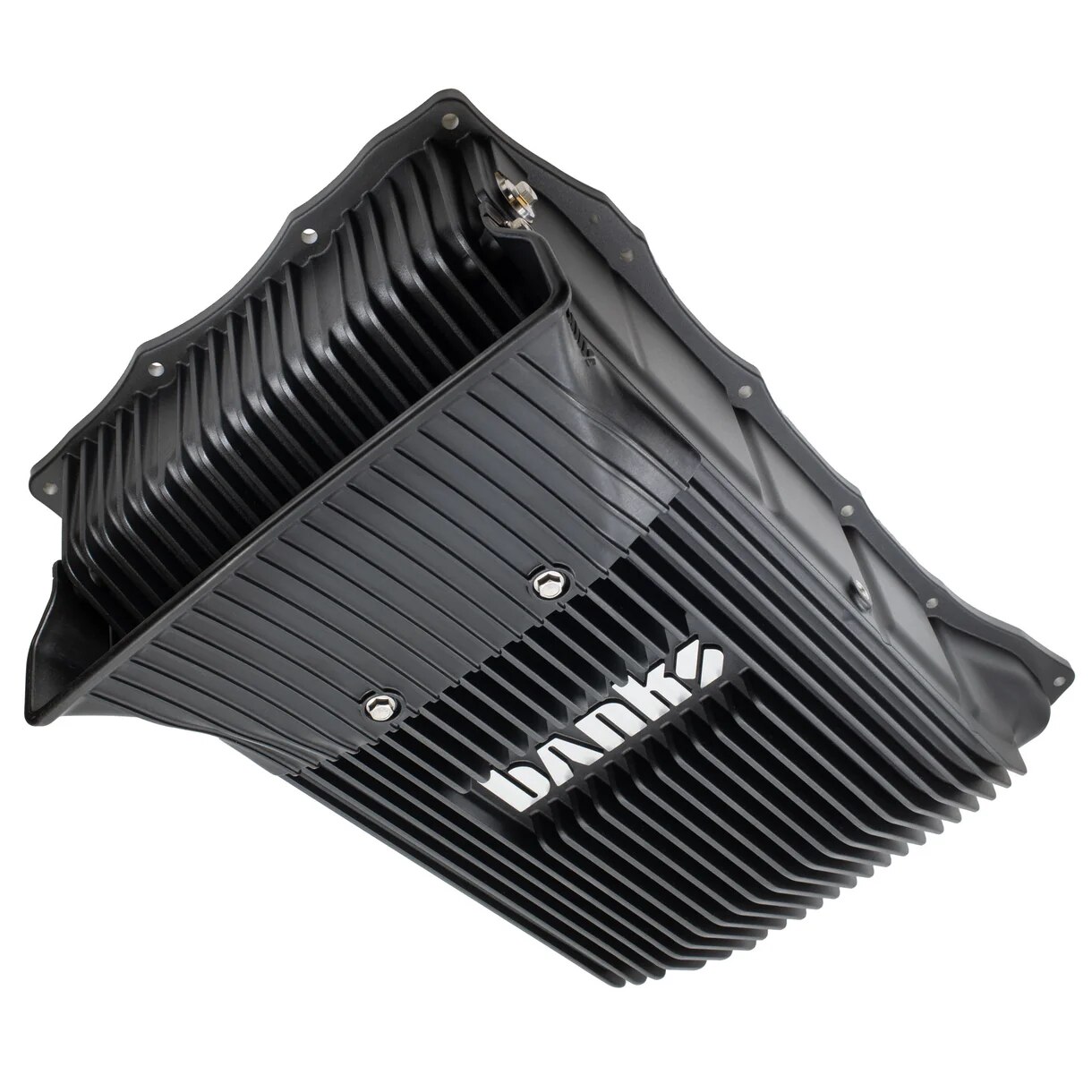

Banks Power Ram-Air Transmission Pan 35148-B
$622.05
Shipping Estimate
Enter destination details for an instant shipping estimate. Final rates are confirmed at checkout.
Description
Banks brings forced air cooling to the heavy-duty Allison 10L1000 transmission for 2020-2026. Using technology from our patented differential covers, the Banks Ram-Air Transmission Pan extends fluid oil life by rejecting more heat than stock and all competitors. An additional three quarts of capacity, a break-away Ram-Air scoop, and Banks FlowThru Fins ® aid in cooling. Cooler fluid means a longer-lasting transmission. Patent No. US 12,313,156 B1
Fitment Note
Will NOT work with AEV skid plates.
Key Features
Engineered for the highest heat rejection, improved oil flow and full oil drainage
Ram-Air scoop provides forced air cooling
Adds 3 additional quarts of fluid capacity
Internal fins transfer heat through the cover into the external fins
123% more heat absorption surface area than stock
134% more cooling surface area than stock
Breakaway Ram-Air Scoop Design Prevents Pan Damage
Internal geometry allows full fluid drainage
Patent No. US 12,313,156 B1
Transmission Pan Gasket: 2020-2024 GM Part No. 24297922
Transmission Fluid Filter: 2020-2024 GM Part No. TF938 or 24298004
Why It's Better
Engineered To Run Cool
The Banks Ram Air Transmission Pan for 2020-2025 Duramax trucks with the 10-speed 10L1000 transmission outperforms and outcools the competition by leveraging decades of Ram-Air technology and thermal management expertise honed in racing and military engine development.
Forced Air Cooling
Taking advantage of the fast-moving cool air under your truck, the Ram-Air Transmission Pans' Patented design provides forced air cooling as it draws ambient air through the large forward-facing Ram-Air scoop and through the external heat radiation fins.
Even with the larger 10 speed Allison transmission tucked between the frame, the Ram-Air Transmission Pan is engineered so that the lowest point is only the sacrificial front scoop while still providing 3 additional quarts of fluid capacity.
The plastic scoop is also designed to break away without causing damage to your pan, just in case. If this happens to you, let us know and we will send a replacement Ram-Air scoop on the house.
•1/8" NPT port for easily adding a supplemental temperature sensor to your vehicle.
•22 deep-cut external radiator fins provide more exposed surface area to the cool air moving under the truck.
•Integrated support structure for internal filter acts as anti-slosh baffles for fluid in the pan.
•20 internal fins absorb more heat from the oil than a standard pan or all other aftermarket pans.
•Die-cast process provides a smoother, less porous interior surface and improves fluid flow in the pan.
•Banks Ram-Air transmission pans for the 10 speed Allison include an OE style fluid level check plug to verify the fluid level when servicing or topping off.
•Angled at 90 degrees to limit spillage when filling, and sealed with a face-sealing stainless steel Banks plug.
The Banks proprietary FlowThru Fins ® maximise thermal energy transfer by lining up the internal absorption and external radiator elements with each other.
Transmission fluid heat is efficiently drawn from the fluid, reducing stress on your Duramax's cooling and lubrication systems.
Banks vs The Competition
What happens when the Ram-Air goes against the competition? While others claim to have massive cooling ability with their designs featuring fins that cross haphazardly across their surface, with no consideration for fluid dynamics, the Banks Ram-Air still comes out on top in total internal and external fin area.
What all others lack though, is the forward facing Ram-Air scoop to help guide the air under your truck directly through its die-cast FlowThru Fins ® , which further enhances heat transfer out of your fluid and away from your transmission. No other pan is as well-engineered.
Die-Cast vs Sandcast
All Banks lubrication cooling products are die-cast, not sand-cast like some competitors. Made with far greater precision, a die-cast part is denser, smoother, and has virtually no porosity compared to the equivalent sand-cast part.
Sand-cast parts often retain the sand they were molded with. Sand is an abrasive material that is bad for bearings and cylinder walls. In other words, you don’t want sand in your oil. Finally, our long, thin cooling fins are only possible with a die-cast process. Although this process costs more, it's worth it.
Fluid Dynamics
Internal cooling fins run inline with the drain port with streamlined passageways
Downward-facing port eases oil change process
Low fluid aeration means longer fluid life
Technical Specs
1/8 NPT port for aux temp sensor
External heat radiation fin count: 22
Internal heat absorption fin count: 20
External heat radiation surface area: 1005 in 2
Internal heat absorption surface area: 835 in 2
Fasteners: 16 x stainless steel M6 flange hex bolts
Material: A380 aluminum diecast with CNC machined surfaces
Oil service
High temp resistant Ferrite Magnetic Drain Plug
Fully drains oil pickup tube for quicker oil changes
Banks recommends Amsoil ATF
Adds 3.0 quarts additional capacity (Check OEM Owners Manual)
Fitment Note
Will NOT work with AEV skid plates.
Key Features
Engineered for the highest heat rejection, improved oil flow and full oil drainage
Ram-Air scoop provides forced air cooling
Adds 3 additional quarts of fluid capacity
Internal fins transfer heat through the cover into the external fins
123% more heat absorption surface area than stock
134% more cooling surface area than stock
Breakaway Ram-Air Scoop Design Prevents Pan Damage
Internal geometry allows full fluid drainage
Patent No. US 12,313,156 B1
Transmission Pan Gasket: 2020-2024 GM Part No. 24297922
Transmission Fluid Filter: 2020-2024 GM Part No. TF938 or 24298004
Why It's Better
Engineered To Run Cool
The Banks Ram Air Transmission Pan for 2020-2025 Duramax trucks with the 10-speed 10L1000 transmission outperforms and outcools the competition by leveraging decades of Ram-Air technology and thermal management expertise honed in racing and military engine development.
Forced Air Cooling
Taking advantage of the fast-moving cool air under your truck, the Ram-Air Transmission Pans' Patented design provides forced air cooling as it draws ambient air through the large forward-facing Ram-Air scoop and through the external heat radiation fins.
Even with the larger 10 speed Allison transmission tucked between the frame, the Ram-Air Transmission Pan is engineered so that the lowest point is only the sacrificial front scoop while still providing 3 additional quarts of fluid capacity.
The plastic scoop is also designed to break away without causing damage to your pan, just in case. If this happens to you, let us know and we will send a replacement Ram-Air scoop on the house.
•1/8" NPT port for easily adding a supplemental temperature sensor to your vehicle.
•22 deep-cut external radiator fins provide more exposed surface area to the cool air moving under the truck.
•Integrated support structure for internal filter acts as anti-slosh baffles for fluid in the pan.
•20 internal fins absorb more heat from the oil than a standard pan or all other aftermarket pans.
•Die-cast process provides a smoother, less porous interior surface and improves fluid flow in the pan.
•Banks Ram-Air transmission pans for the 10 speed Allison include an OE style fluid level check plug to verify the fluid level when servicing or topping off.
•Angled at 90 degrees to limit spillage when filling, and sealed with a face-sealing stainless steel Banks plug.
The Banks proprietary FlowThru Fins ® maximise thermal energy transfer by lining up the internal absorption and external radiator elements with each other.
Transmission fluid heat is efficiently drawn from the fluid, reducing stress on your Duramax's cooling and lubrication systems.
Banks vs The Competition
What happens when the Ram-Air goes against the competition? While others claim to have massive cooling ability with their designs featuring fins that cross haphazardly across their surface, with no consideration for fluid dynamics, the Banks Ram-Air still comes out on top in total internal and external fin area.
What all others lack though, is the forward facing Ram-Air scoop to help guide the air under your truck directly through its die-cast FlowThru Fins ® , which further enhances heat transfer out of your fluid and away from your transmission. No other pan is as well-engineered.
Die-Cast vs Sandcast
All Banks lubrication cooling products are die-cast, not sand-cast like some competitors. Made with far greater precision, a die-cast part is denser, smoother, and has virtually no porosity compared to the equivalent sand-cast part.
Sand-cast parts often retain the sand they were molded with. Sand is an abrasive material that is bad for bearings and cylinder walls. In other words, you don’t want sand in your oil. Finally, our long, thin cooling fins are only possible with a die-cast process. Although this process costs more, it's worth it.
Fluid Dynamics
Internal cooling fins run inline with the drain port with streamlined passageways
Downward-facing port eases oil change process
Low fluid aeration means longer fluid life
Technical Specs
1/8 NPT port for aux temp sensor
External heat radiation fin count: 22
Internal heat absorption fin count: 20
External heat radiation surface area: 1005 in 2
Internal heat absorption surface area: 835 in 2
Fasteners: 16 x stainless steel M6 flange hex bolts
Material: A380 aluminum diecast with CNC machined surfaces
Oil service
High temp resistant Ferrite Magnetic Drain Plug
Fully drains oil pickup tube for quicker oil changes
Banks recommends Amsoil ATF
Adds 3.0 quarts additional capacity (Check OEM Owners Manual)
