ATS Allison Stage 6 Rebuild Kit Fits 2006-2010 6.6L Duramax - ATS Diesel Performance - 313-906-4308

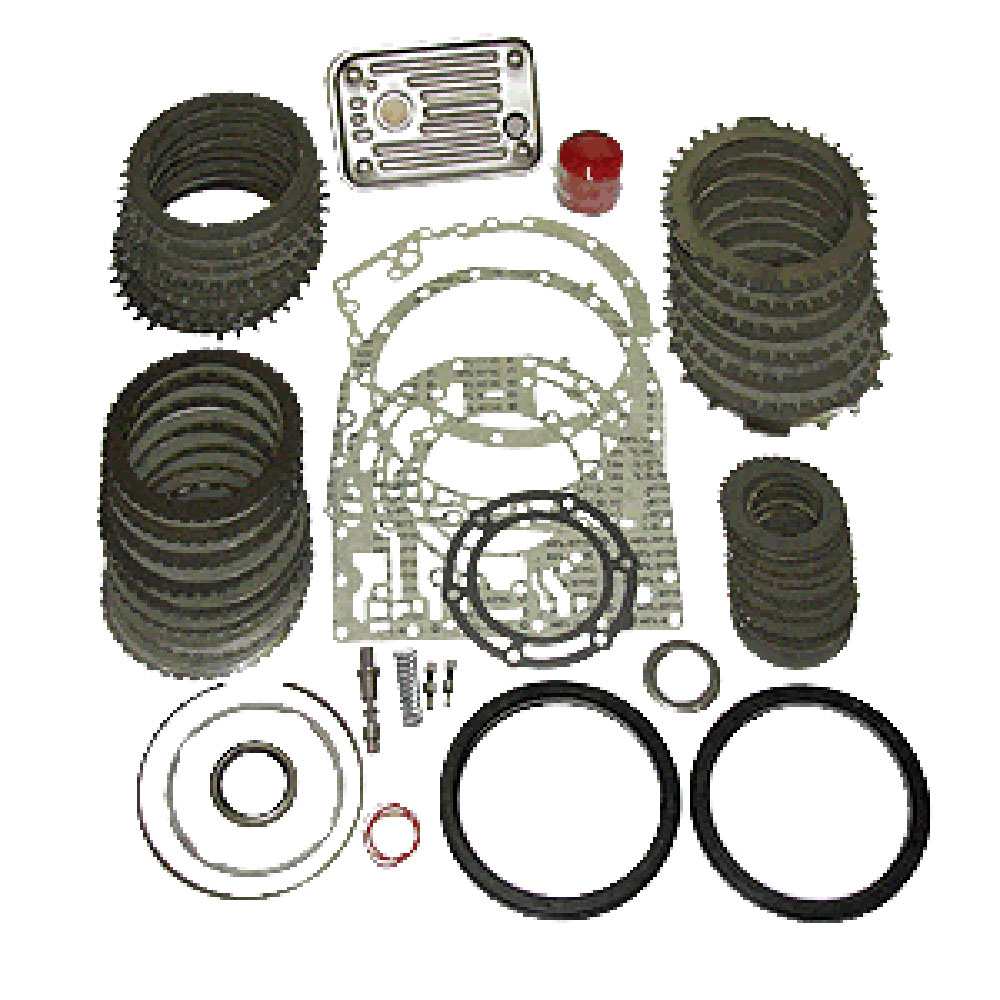

2006-2010 GM Allison 6 speed Kit (Stage 6).


Includes:


TripleLok Torque Converter (Patented Square tab) Exchange the TripleLok Torque Converter for a 5 Star Viskus Clutch Torque Converter

Pump Calibration Kit

Manufactured C1, C2, C3, C4, and C5 clutch packs

C1 Includes Exclusive 16 single sided friction plates with HD pressure plate

C2 Includes 8 Friction plates and 8 Laser Cut steel plates with step ground pressure plate

C3 Includes 5 Exclusive full friction plates and laser cut steel plates with micro ground pressure plate

C4 Includes 6 frictions and 5 laser cut steels

C5 includes 6 frictions and 5 laser cut steels

Valve Body Calibration Kit, A and B Trim Valves

Seal and Gasket Kit

Internal and external filters


Built to handle street/strip, sled-pulling, up to 1000rwhp and can still be daily driven. Co-Pilot Sshould be added to this kit to increase hydraulic torque capacity


Application:


2006-2010 2500/3500

Duramax GM Light Duty

Diesel
