ATS Allison Stage 5 Rebuild Kit Fits 2006-2010 6.6L Duramax - ATS Diesel Performance - 313-905-4308

2006-2010 GM Allison 6 speed Kit (Stage 5).

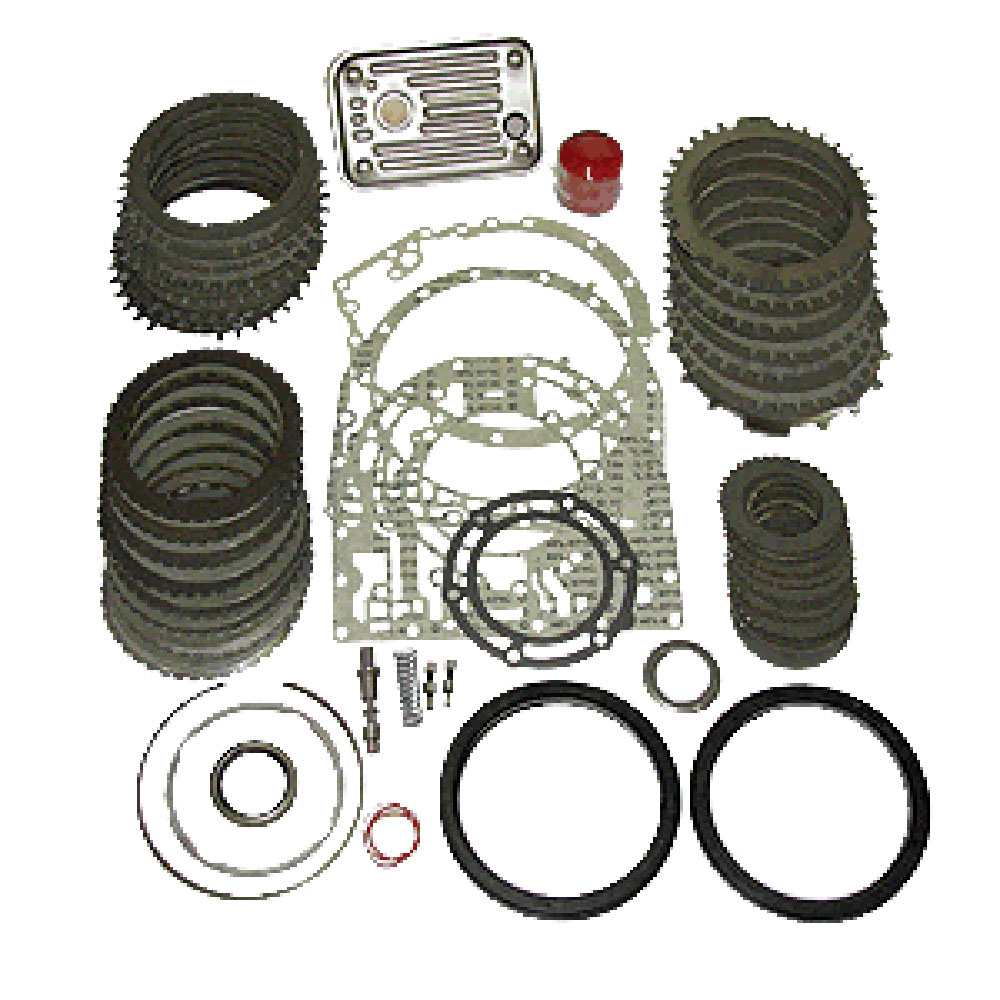

Includes:


TripleLok Torque Converter (Patented Square tab) Exchange the TripleLok Torque Converter for a 5 Star Viskus Clutch Torque Converter

Pump Calibration Kit

Manufactured C1, C2, C3 and C4 clutch packs

C1 Includes Exclusive 16 single sided friction plates with HD pressure plate

C2 Includes 8 Friction plates and 8 Laser Cut steel plates with step ground pressure plate

C3 Includes 5 Exclusive full friction plates and laser cut steel plates with micro ground pressure plate

C4 Includes 6 frictions and 5 laser cut steels

Valve Body Calibration Kit, A and B Trim Valves

Seal and Gasket Kit

Internal and external filters


Increased towing capability - power holding up to 800hp - mild street/strip and sled-pulling use. Co-Pilot can be added to this kit to increase hydraulic torque capacity

Application:


2006-2010 2500/3500

Duramax GM Light Duty

Diesel
