68RFE/AS68RC Thermal Bypass Valve Upgrade, 10-12 RAM 6.7L Cummins - ATS Diesel Performance - 310-005-2356

Protect your transmission from catastrophic heat failure with the ATS Thermal Bypass Block Upgrade (310-005-2356) . For owners of 2010-2012 RAM 6.7L Cummins trucks equipped with the Max Tow Package (Sales Code AHQ) or the Dual Transmission Oil Cooler (Sales Code NHT) , the factory thermal bypass block is a notorious failure point. This billet aluminum block is a complete, high-flow replacement for the OEM unit, ensuring 100 percent of your transmission fluid reaches the coolers at all times.

Whether you are running the 68RFE or the Aisin AS68RC , the factory block found in the 52014523AB assembly contains an internal thermostat that frequently sticks in the closed position. When this occurs, hot fluid is routed straight back into the transmission, skipping the cooling system entirely. The ATS upgrade solves this by providing a solid-flow billet block that eliminates the restrictive valve, keeping your fluid temps stable and your transmission clutches protected.

How to Identify If Your Truck Has This System:

This upgrade is specifically designed for trucks equipped with advanced cooling options. You can confirm your truck needs this by checking these two locations:


Driver's Side Wheel Well: Look near the fuel filter by the engine block. If you see a square aluminum block where the transmission lines meet, you have the serviceable bypass block that this ATS unit replaces.

In Front of the Radiator: If you have a secondary mini radiator mounted in front of the main cooling stack, your truck utilizes the thermal bypass system associated with the NHT or AHQ options.


Performance and Engineering Benefits:


ATS Part Number: 310-005-2356

Direct OEM Block Replacement: This unit is a complete billet replacement for the factory block found in OEM Assembly 52014523AB.

Prevent Transmission Failure: By removing the failure-prone internal thermostat, you eliminate the risk of the valve sticking closed, which is the primary cause of rapid transmission overheating.

Maximum Cooling Efficiency: Engineered to allow unrestricted fluid volume to and from the transmission oil cooler, keeping your 6.7L Cummins within safe operating temperatures during heavy hauls.

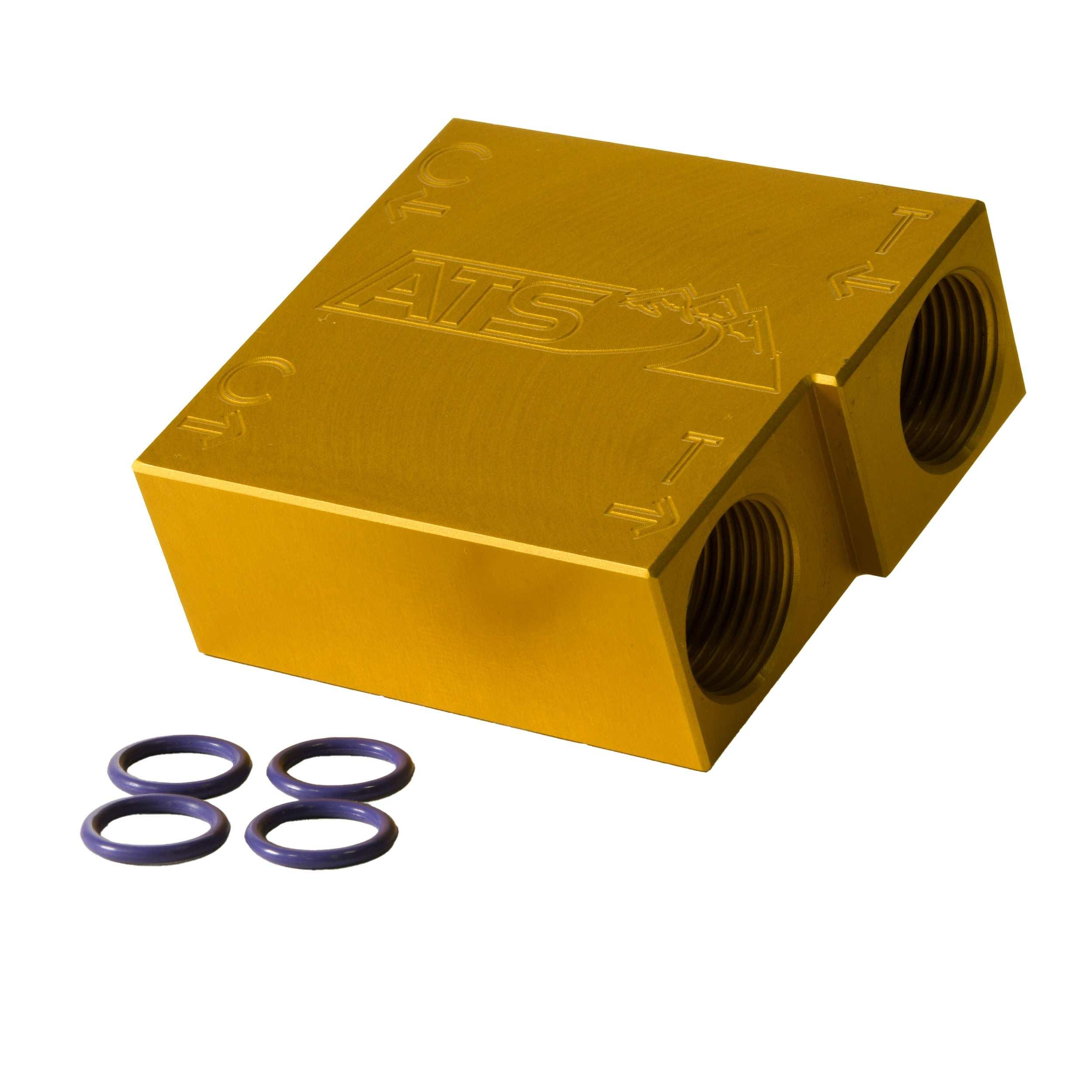

Premium Billet Construction: CNC-machined for precision fitment and anodized for a professional look and superior corrosion resistance.

Easy Installation: Features engraved flow marks for a clear-cut install and includes new replacement O-rings to ensure a guaranteed leak-free seal.


Vehicle Compatibility and Quick Specs:


Make: RAM/Dodge

Years: 2010, 2011, 2012

Engine: 6.7L Cummins Turbo Diesel

Transmissions: 68RFE or Aisin AS68RC

Relevant Sales Codes: AHQ (Max Tow Package) or NHT (Dual Transmission Cooler)

Replaces OEM Part: Serviceable block in Assembly 52014523AB


Temperature Expectations (Post-Upgrade):

By enabling full-time fluid flow through your cooling stack, the ATS block (310-005-2356) drastically lowers operating temperatures.
