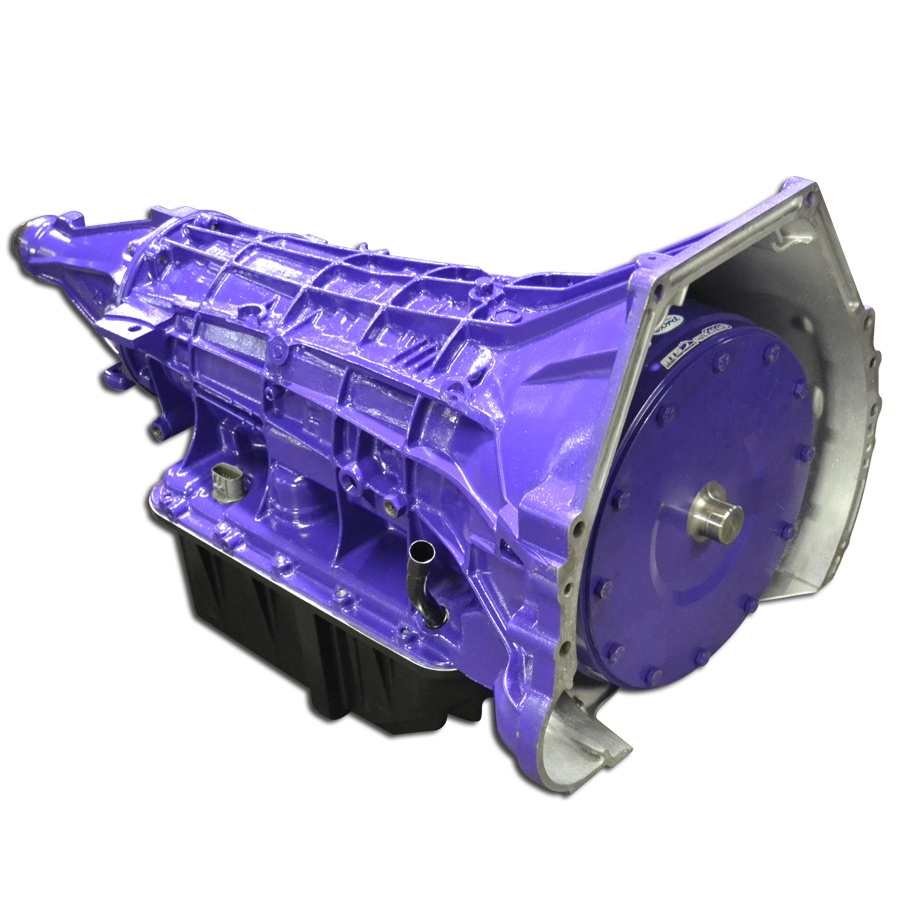

E4Od Stage 1 Package 1995-98 Ford 2Wd ATS Diesel - ATS Diesel Performance - 309-912-3176

The Ford E4OD transmission was designed to fit behind various powerplants including gas and diesel engines. Most failures revolve around the torque of the diesel motor, especially when power is increased over stock. The good news is that the framework of the E4OD allows for substantial increases in reliability and capability.


Includes:


ATS Five Star Torque Converter featuring a billet cover, five lock-up clutches, available in either low or high stall configurations

High performance overdrive, intermediate and forward clutch packs, with one additional clutch added per section

Modified transmission pump to increase line pressure, which provides increased clamping force on the clutch packs

Modified valve body that focuses around precise shifts, increase line pressure and increasing the torque capacity of the E4OD

New bearings, seals and gaskets

New low roller clutch, heavy duty intermediate sprag, bonded coast and overdrive pistons

ATS Deep Transmission Pan which adds 5 quarts of fluid over stock, which helps keep the transmission cool


The ATS Stage 1 Package is designed for trucks that are used for light towing, daily driving and stock or slightly modified power levels. The transmission package comes with a 5 year/500,000 mile warranty. For specific applications or uses, contact ATS to discuss learn more about which package is right for you.


Features:


E4OD Stage 1 Package 1995-1998 Ford 2WD

Engine Manufacturer: Powerstroke

Make: Ford

Models: F-250/F-350/F-450

Fuel Type: Diesel

Drive: 2WD

Transmission Model: E4OD

Warranty:5 year/500,000 mile warranty

Sold As: Kit
