Out of Stock
ATS Diesel PerformanceSKU: BSD-ATS-303-007-2272ATS 47RE 48RE Billet Channel Plate Valve Body Upgrade Fits 96-07 Dodge 5.9L Cummins - ATS Diesel Performance - 303-007-2272
$633.59
Shipping Estimate
Enter destination details for an instant shipping estimate. Final rates are confirmed at checkout.
Description
The ATS 47RE/48RE Billet Channel Plate Upgrade Kit replaces warped, flexible factory cast-aluminum channel plates with a rigid, precision-machined billet solution. By restoring a perfectly flat sealing surface, it eliminates the internal cross-leaks that bleed off critical line pressure and cause shift flares or premature clutch failure.
Features and Benefits:
Eliminates Cross-Leaks: Replaces flexible, warped factory cast-aluminum channel plates to guarantee a perfectly flat, cross-leak-free seal.
Premium ATP5 Aluminum: Precision-machined in Arvada, CO from 5083 Aluminum Alloy - highly stable, virtually porosity-free, and completely resistant to warping under extreme heat cycles.
Redesigned Fluid Routing: Optimized internal channels decrease the time it takes transmission fluid to pressurize the clutch packs and bands.
Faster, Cleaner Shifts: Shaves hundredths of a second off shift timing, keeping your truck firmly locked in its power band between gears.
Complete Installation Kit: Includes premium separator plates, a specialized drill guide, and the exact drill bit required for a precise install.
Exceptional Dimensional Stability: Vertically quenched to eliminate internal stress before machining, preventing warping or distortion under severe service conditions.
Porosity-Free Microstructure: A dense, uniform composition ensures Automatic Transmission Fluid (ATF) never hides in microscopic pockets or leaks across channels.
Uniform Heat Distribution: Built to withstand heavy towing and extreme line pressures without losing its perfectly flat shape.

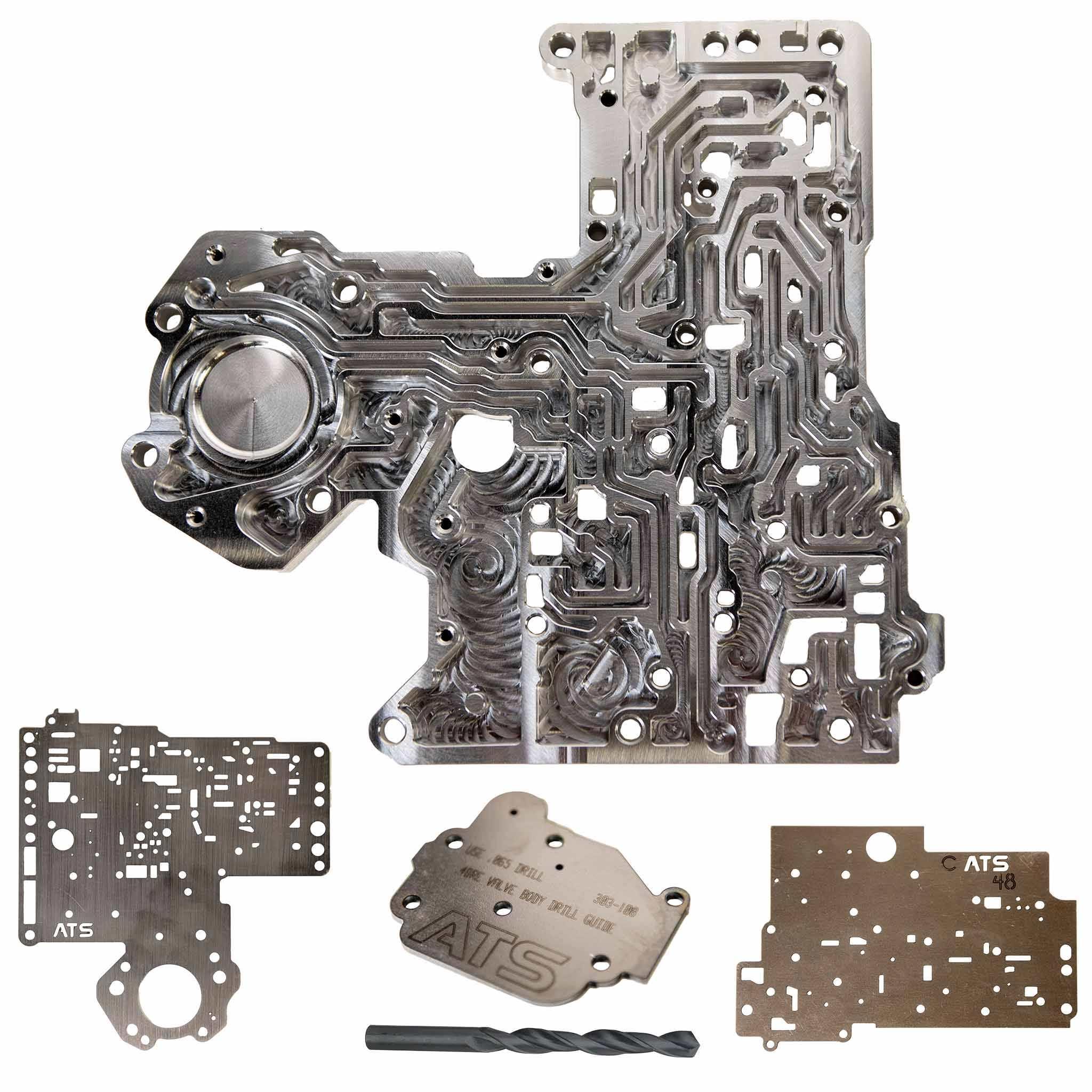

Includes:
ATS Billet Channel Plate (CNC-machined from premium ATP5 aluminum alloy)
ATS Large Separator Plate
ATS Small Separator Plate
Drill Guide
.065 inch Drill Bit
Applications:
1996-2007 Dodge 2500/3500 5.9L Cummins (47RE/48RE)
Details:
Material: 5083 Aluminum Alloy
Finish: Raw
Engine Manufacturer: Cummins
Engine Years: 1996-2007
Fuel Type: Diesel
Liter: 5.9 Liter
Transmission Model: 47-RE, 48-RE
Transmission Type: Automatic
Country Of Origin: USA
Warranty: 3-Year Limited Warranty
Features and Benefits:
Eliminates Cross-Leaks: Replaces flexible, warped factory cast-aluminum channel plates to guarantee a perfectly flat, cross-leak-free seal.
Premium ATP5 Aluminum: Precision-machined in Arvada, CO from 5083 Aluminum Alloy - highly stable, virtually porosity-free, and completely resistant to warping under extreme heat cycles.
Redesigned Fluid Routing: Optimized internal channels decrease the time it takes transmission fluid to pressurize the clutch packs and bands.
Faster, Cleaner Shifts: Shaves hundredths of a second off shift timing, keeping your truck firmly locked in its power band between gears.
Complete Installation Kit: Includes premium separator plates, a specialized drill guide, and the exact drill bit required for a precise install.
Exceptional Dimensional Stability: Vertically quenched to eliminate internal stress before machining, preventing warping or distortion under severe service conditions.
Porosity-Free Microstructure: A dense, uniform composition ensures Automatic Transmission Fluid (ATF) never hides in microscopic pockets or leaks across channels.
Uniform Heat Distribution: Built to withstand heavy towing and extreme line pressures without losing its perfectly flat shape.
Includes:
ATS Billet Channel Plate (CNC-machined from premium ATP5 aluminum alloy)
ATS Large Separator Plate
ATS Small Separator Plate
Drill Guide
.065 inch Drill Bit
Applications:
1996-2007 Dodge 2500/3500 5.9L Cummins (47RE/48RE)
Details:
Material: 5083 Aluminum Alloy
Finish: Raw
Engine Manufacturer: Cummins
Engine Years: 1996-2007
Fuel Type: Diesel
Liter: 5.9 Liter
Transmission Model: 47-RE, 48-RE
Transmission Type: Automatic
Country Of Origin: USA
Warranty: 3-Year Limited Warranty
