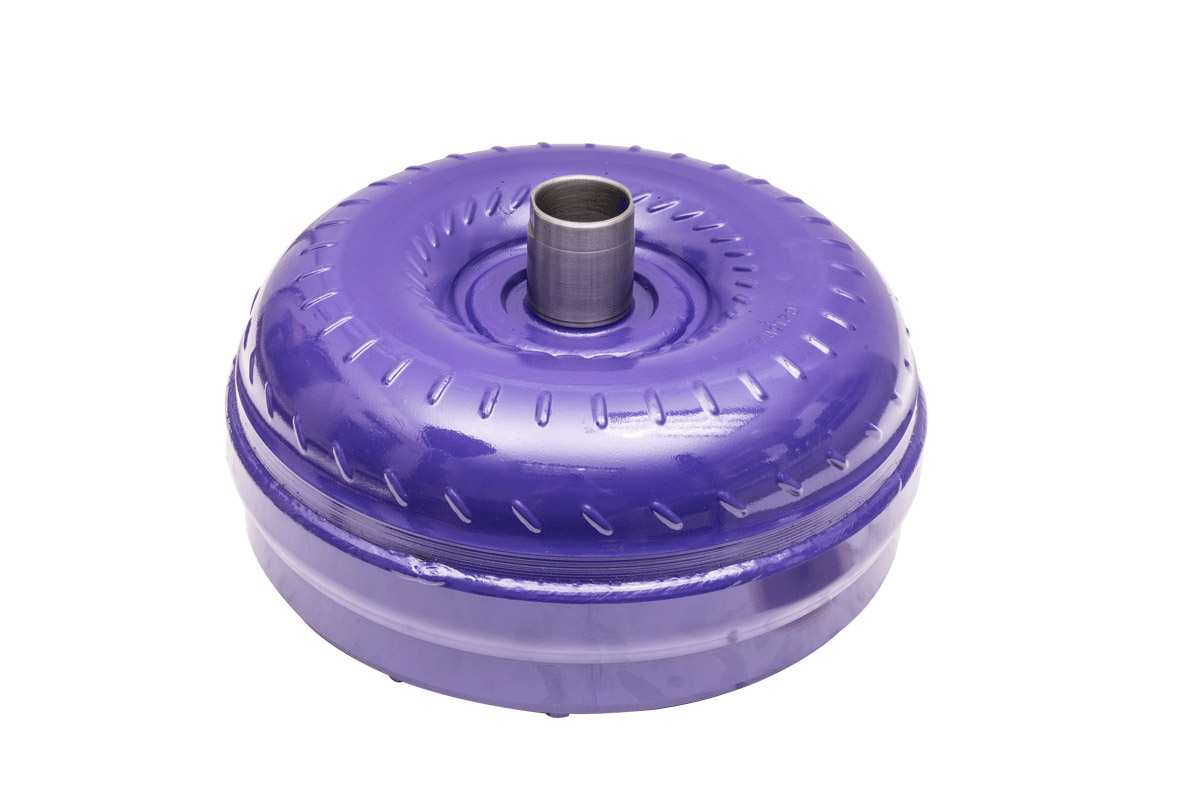

ATS Five Star Performance Torque Converter Factory 1300-1500 RPM Stall Speed 5R110 2008-2010 Ford 6.4L Power Stroke - ATS Diesel Performance - 302-950-3326

Standard in all transmission packages, and available individually, is the ATS Five Star Torque Converter. This torque converter is built to handle daily driving and towing duties while delivering reliable performance.

The ATS Five Star utilizes an optimized factory stall speed that features improved torque multiplication. With factory torque multiplication at approximately 1.25:1, the ATS Five Star boasts 2.4:1. This occurs when peak engine torque is achieved. Increased torque multiplication results in improved vehicle response, towing and driving ability.

Every Five Star comes standard with a 5 year / 500,000 mile warranty. When the most efficient torque converter is required, look no further than ATS Five Star Torque Converter.


Details:


Five Star Viskus Clutch Drive Torque Converter

Factory Stall Speed 1300-1500 RPM

Billet Stator F-Trim

Positive Impeller

Patented Viskus Clutch Drive System for increased efficiency

Billet Cover with Patented Square Flank Drive

Square Tab Construction (Not Round)

Viskus Disc CNC Laser Cut Clutch Plates

Billet Piston with Patented Flank Drive Tab design

Proprietary ATS exclusive Clutch Formulation with unique bonding technology (ensures 100 percent chemical Bond)

Redesigned Spring Dampener supports increased torque loads

4340 hardened turbine splines provide longevity and reliability

Fully welded turbine and impeller vanes

CNC Stator with high flow windows increase oil flow, providing increased efficiency

Full roller bearing construction between high load areas

4340 CNC cut pump drive hub locked into impeller housing

Plasma welded for unsurpassed strength

Sold Individually

SKU: 3029503326


Fits:


2007.5-2010 Ford F250|F350|F450 Truck w/6.4L Powerstroke and 5R110 TorqShift Transmission
