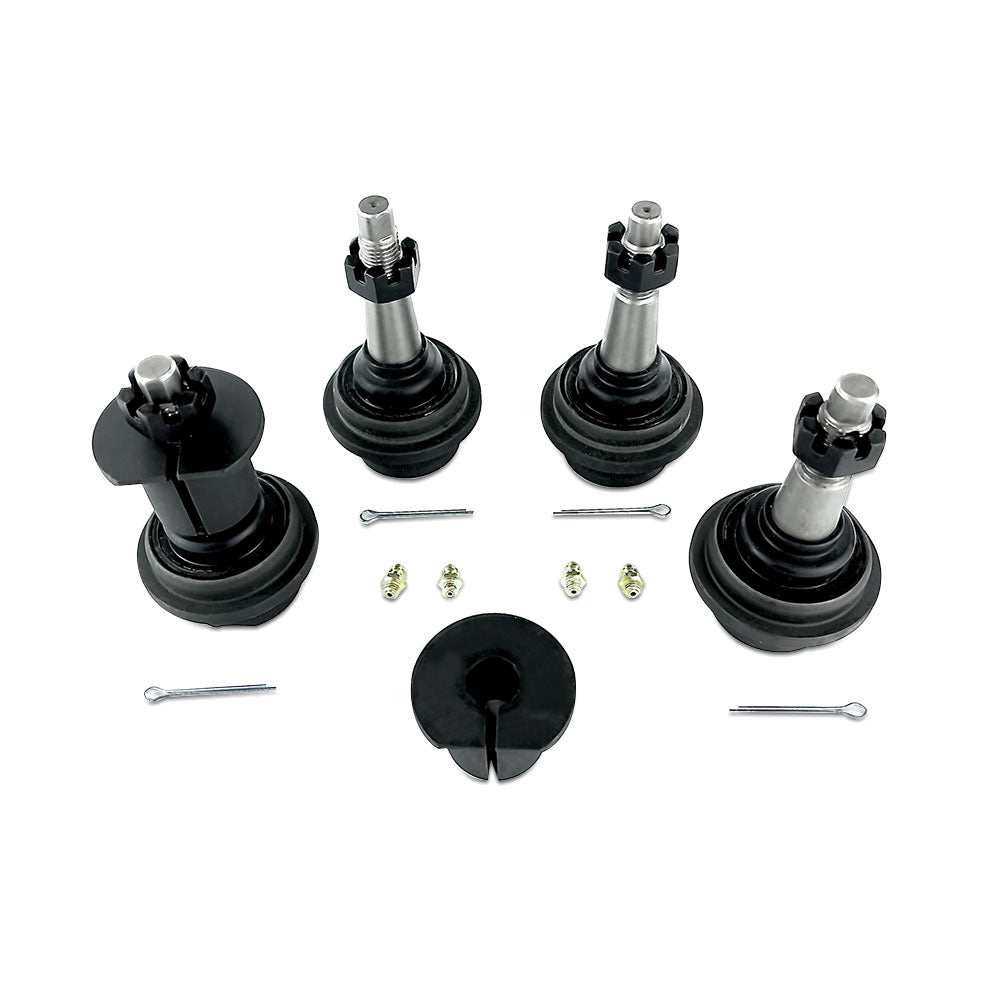

Heavy Duty Knurled Ball Joint Kit 19-22 Jeep Gladiator JT 18-22 Jeep Wrangler JL/JLU Rubicon Mohave Sahara Sport Includes: 2 Upper and 2 Lower - Apex Chassis - KIT113K

Apex Chassis Heavy Duty Knurled Ball Joint Kit 19-22 Jeep Gladiator JT 18-22 Jeep Wrangler JL/JLU Rubicon Mohave Sahara Sport.

Includes:


2 Upper

2 Lower


Note:


Knurled is designed for vehicles with aluminum knuckles that have undergone 2 to 3 ball joint replacements.


What It Fits:


Jeep Wrangler JL (2018-2026) 4WD

Jeep Gladiator JT (2019-2026) 4WD


The Special Sauce:


Housing


SAE 1045 Solid Steel Forged Housing: This is unequivocally the best carbon alloy steel for this application.

Knurled Housings: The preferred design for aftermarket installations.

CNC Machined Housing: Make our parts and bearings dimensionally perfect, eliminating any die wear issues.


Ball Studs


SAE 4140 Hot Forged Chromoly Ball Studs: For the strongest possible metallurgy.

Induction Heat Treated Ball Studs: Provides a very precise heat treatment to the exact depth and location we want it.

Polished Ball Studs: Built like an anti-friction bearing with extremely precise tolerances.

Rolled Threads: Made by pressing the shape of the threads into the ball stud instead of cutting. This strengthens the threads instead of weakening them and allows for easy movement of hardware. This ain't no Ikea furniture!

Step Threads: Allows for very easy movement of hardware on install and superior holding when torqued (installer choice).


Bearing Design


Bronze Bearing Design: Our newest improvement in bearing design. Combines our perfectly polished ball studs, encased in a solid steel forged housing, lined with a highly durable, low friction bronze bearing.


Boots


CR Rubber Boots: The most durable material for undercar applications. Resistant to deterioration from road level ozone, oil/gas/engine fluids and extreme heat or cold.

Internal Seal Boot: The boot is coined onto the ball joint, for superior sealing against contaminants.


Finish


E-Coating: Extremely durable electrochemical finishing process


Hardware


Grade 8 - Class 10.9 Hardware: Superior tensile strength.

Castle Nut: Industry standard where high vibration loads occur.


Lubrication


Pre Threaded Zerk Housing: If you have ever installed a MOOG Ball Joint without a pre-threaded zerk fitting you will understand what a simple but great feature this is. Another installer fav.

Greaseable: Because it should be.

Pre-Greased: Just in case you forget, we have you covered.

Gull Winged Grease Grooves: Allows for improved lubrication disbursement around the ball stud.

Zerk Fittings: Included for every application.


Special Features


Custom Features: Lower: Angled Zerk housing for easier servicing.
