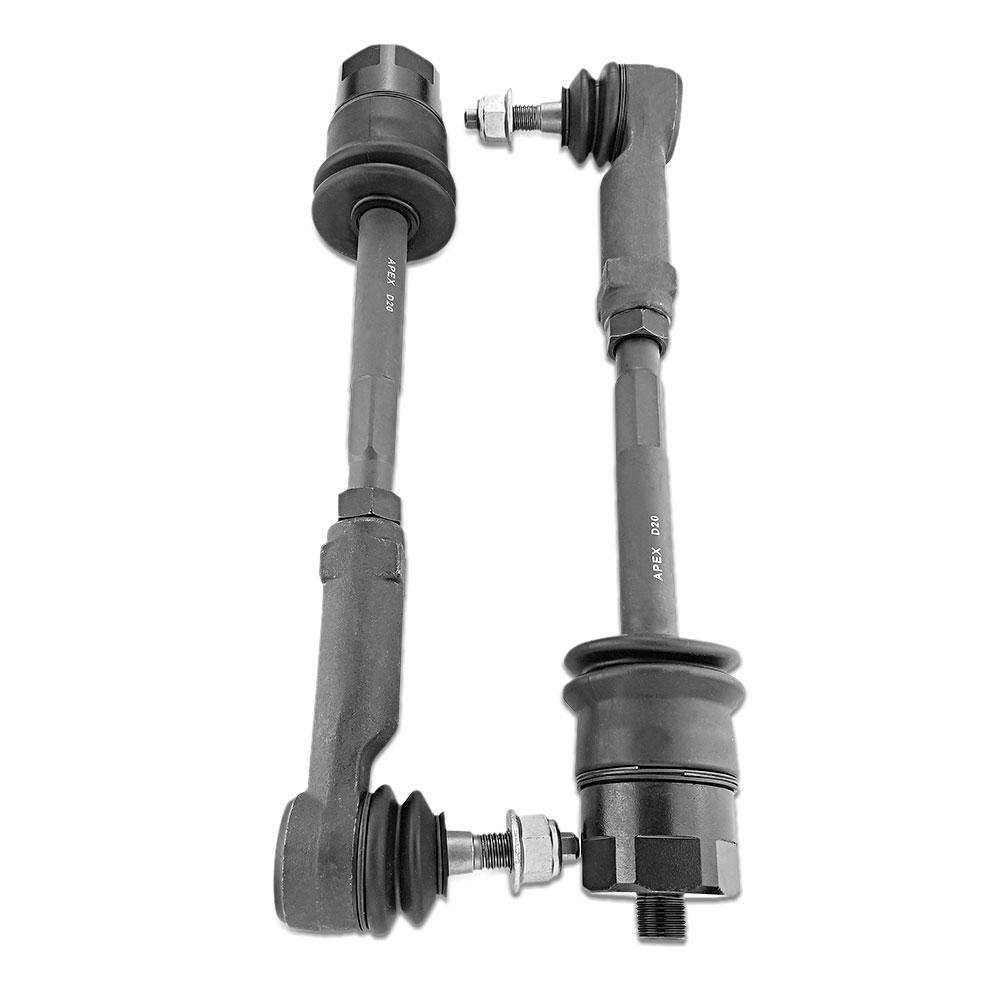

Heavy Duty Tie Rod Assembly Fits: 01-06 Chevy Silverado/Suburban/Sierra 1500 HD/2500/3500 01-13 GMC Yukon XL 2500 02-06 Avalanche 2500 Includes: Left & Right Inner & Outer Tie Rod - Apex Chassis - KIT109

Chevy/GMC Super HD Tie Rod Assembly Front Left/Right Apex Design (2) TR104 For 02-06 Avalanche 2500 01-06 Silverado/Sierra1500 HD/2500/3500 01-13 Yukon XL 2500 Apex Chassis. At APEX we like to say our quality is not consistent, it's constantly evolving.

We rely entirely on engineering, in-house and off-road testing as well as customer feedback to decide on the best design and materials to choose.

What It Fits:


Chevrolet Avalanche 2500 (2002-2006) 2WD or 4WD


Chevrolet Silverado 1500 HD (2001-2006) 2WD or 4WD


Chevrolet Silverado 2500 (2001-2004) 2WD or 4WD


Chevrolet Silverado 2500 HD (2001-2010) 2WD or 4WD


Chevrolet Silverado 3500 (2001-2006) 2WD or 4WD


Chevrolet Silverado 3500 HD (2007-2010) 2WD or 4WD


Chevrolet Suburban 2500 (2001-2013) 2WD or 4WD


GMC Sierra 1500 HD (2001-2006) 2WD or 4WD


GMC Sierra 2500 (2001-2004) 2WD or 4WD


GMC Sierra 2500 HD (2001-2010) 2WD or 4WD


GMC Sierra 3500 (2001-2006) 2WD or 4WD


GMC Sierra 3500 HD (2007-2010) 2WD or 4WD


GMC Yukon XL 2500 (2001-2013) 2WD or 4WD


Hummer H2 (2003-2007) 2WD or 4WD


OUTER: Phosphate Finish: Extremely durable. Double coated. Rugged look.

INNER: E-Coat Finish: Durable e-coat treatment

Grade 8 - Class 10.9 Hardware: Superior tensile strength.

Tension Nut: Very strong hold in most applications.

SAE 1045 Solid Steel Forged Housing: This is unequivocally the best carbon alloy steel for this application.

CNC Machined Housing: Make our parts and bearings dimensionally perfect, eliminating any die wear issues.

Rugged Metal to Metal Bearing

SAE 4140 hot forged Chromoly Ball Studs: For the strongest possible metallurgy.

Polished Ball Studs: Are built like an anti-friction bearing with extremely precise tolerances.

Rolled Threads: Are made by pressing the shape of the threads into the ball stud instead of cutting. This strengthens the threads instead of weakening them and allows for easy movement of hardware. This ain't no Ikea furniture!

Step Threads: allows for very easy movement of hardware on install and superior holding when torqued (installer choice).

CR Rubber Boots: The most durable material for undercar applications. Resistant to deterioration from road level ozone, oil/gas/engine fluids and extreme heat or cold

Accordion Boot: ideal for high-articulation components, more flexibility means longer life.

Pre threaded Zerk Housing: If you have ever installed a MOOG Ball Joint without a pre-threaded zerk fitting you will understand what a simple but great feature this is. Another installer fav.

Greaseable: Because it should be.

Pre-Greased: Just in case you forget, we have you covered.

Gull Winged Grease Grooves: Allows for improved lubrication disbursement around the ball stud.

Zerk Fittings: Included for every application.

Custom Features: Over twice the size of OE design.
