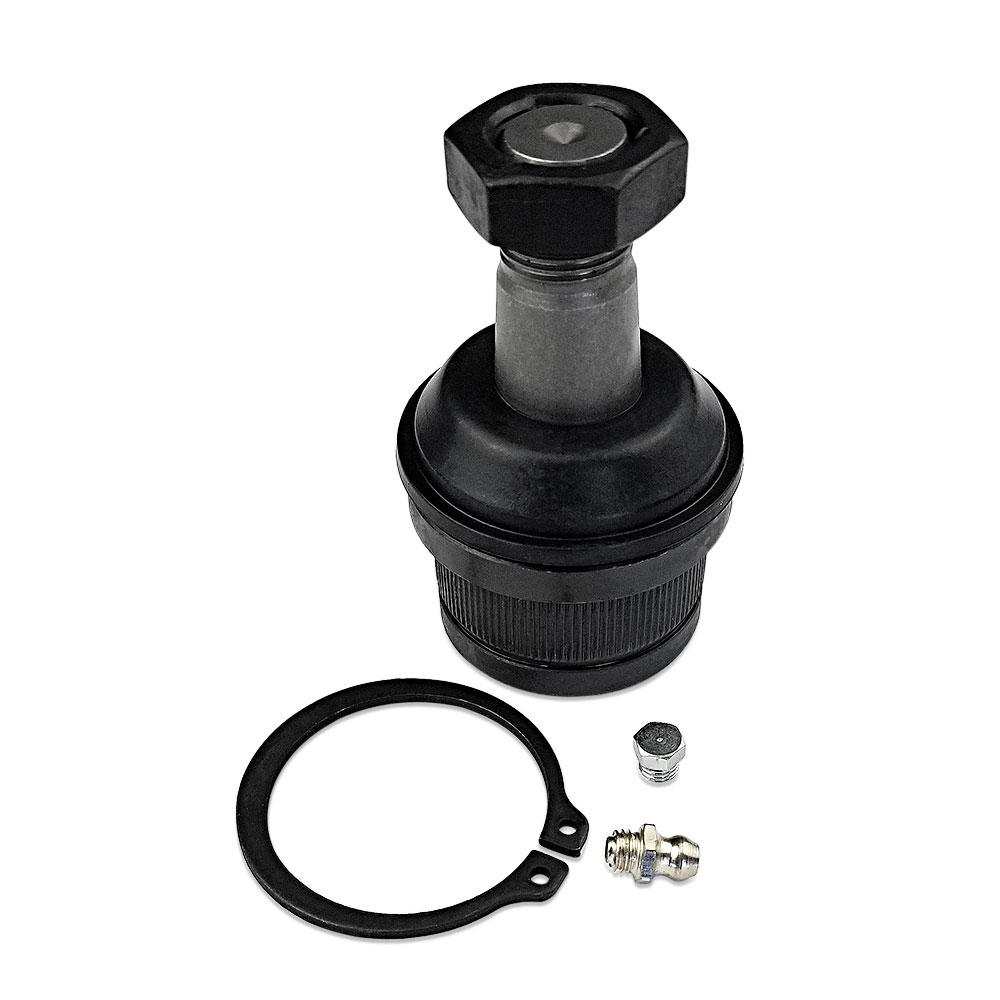

Heavy Duty Front Lower Ball Joint Fits: 69-99 Jeep/Ford/Chevy/GMC - Apex Chassis - BJ149

Jeep/Ford/Chevy/GMC Front Lower Ball Joint Apex Chassis. At APEX we like to say our quality is not consistent, it's constantly evolving. We rely entirely on engineering, in-house and off-road testing as well as customer feedback to decide on the best design and materials to choose.

What It Fits:


Chevrolet Blazer (1987-1991) 2WD or 4WD


Chevrolet Blazer (1969-1974) 4WD


Chevrolet K5 Blazer (1975-1984) 4WD


Dodge RAM 1500 (1994-1999) 4WD


Dodge RAM 2500 (1994-1999) 4WD


Dodge Ramcharger (1974-1993) 4WD


Ford Bronco (1971-1996) 2WD or 4WD


Ford F150 (1976-1996) 4WD


Ford F150 (1981-1986) 2WD


Ford F250 (1974-1996) 4WD


GMC Jimmy (1985-1991) 2WD


GMC Jimmy (1971-1991) 4WD


Chevrolet K2500 (1979-1986) 4WD


Chevrolet K2500 Suburban (1979-1986) 4WD


Jeep CJ5 (1972-1983) 4WD


Jeep CJ6 (1972-1975) 4WD


Jeep CJ7 (1976-1986) 4WD


Jeep CJ8 Scrambler (1981-1985) 4WD


Jeep Grand Wagoneer (1984-1991) 2WD or 4WD


Jeep Wagoneer (1974-1983) 2WD or 4WD


Jeep Gladiator J10 Pickup (1974-1988) 4WD


Jeep Gladiator J20 Pickup (1974-1988) 4WD


Phosphate Finish: Extremely durable. Double coated. Rugged look.

Grade 8 - Class 10.9 Hardware: Superior tensile strength

Tension Nut: Very strong hold in most applications

SAE 1045 Solid Steel Forged Housing: This is unequivocally the best carbon alloy steel for this application.

Knurled Housings: The preferred design for aftermarket installations.

CNC Machined Housing: Make our parts and bearings dimensionally perfect, eliminating any die wear issues.

Military Grade Acetal Bearing: The same bearing material spec'd by the US military for Hummer ball joints. This material is: dimensionally stable (doesn't expand or contract with hot or cold, water or oil absorption), it can be polished smooth as steel, is anti-friction, Doesn't wear itself out under load like metal on metal, and can take an absolute pounding.

SAE 4140 hot forged Chromoly Ball Studs: For the strongest possible metallurgy.

Induction Heat Treated Ball Studs: Provides a very precise heat treatment to the exact depth and location we want it.

Polished Ball Studs: Are built like an anti-friction bearing with extremely precise tolerances.

Rolled Threads: Are made by pressing the shape of the threads into the ball stud instead of cutting. This strengthens the threads instead of weakening them and allows for easy movement of hardware. This ain't no Ikea furniture!

Step Threads: allows for very easy movement of hardware on install and superior holding when torqued (installer choice).

CR Rubber Boots: The most durable material for undecar applications. Resistant to deterioration from road level ozone, oil/gas/engine fluids and extreme heat or cold.

Integral Pancake Boot

Pre threaded Zerk Housing: If you have ever installed a MOOG Ball Joint without a pre-threaded zerk fitting you will understand what a simple but great feature this is. Another installer fav.

Greaseable: Because it should be.

Pre-Greased: Just in case you forget, we have you covered.

Gull Winged Grease Grooves: Allows for improved lubrication disbursement around the ball stud.

Zerk Fittings: Included for every application.
