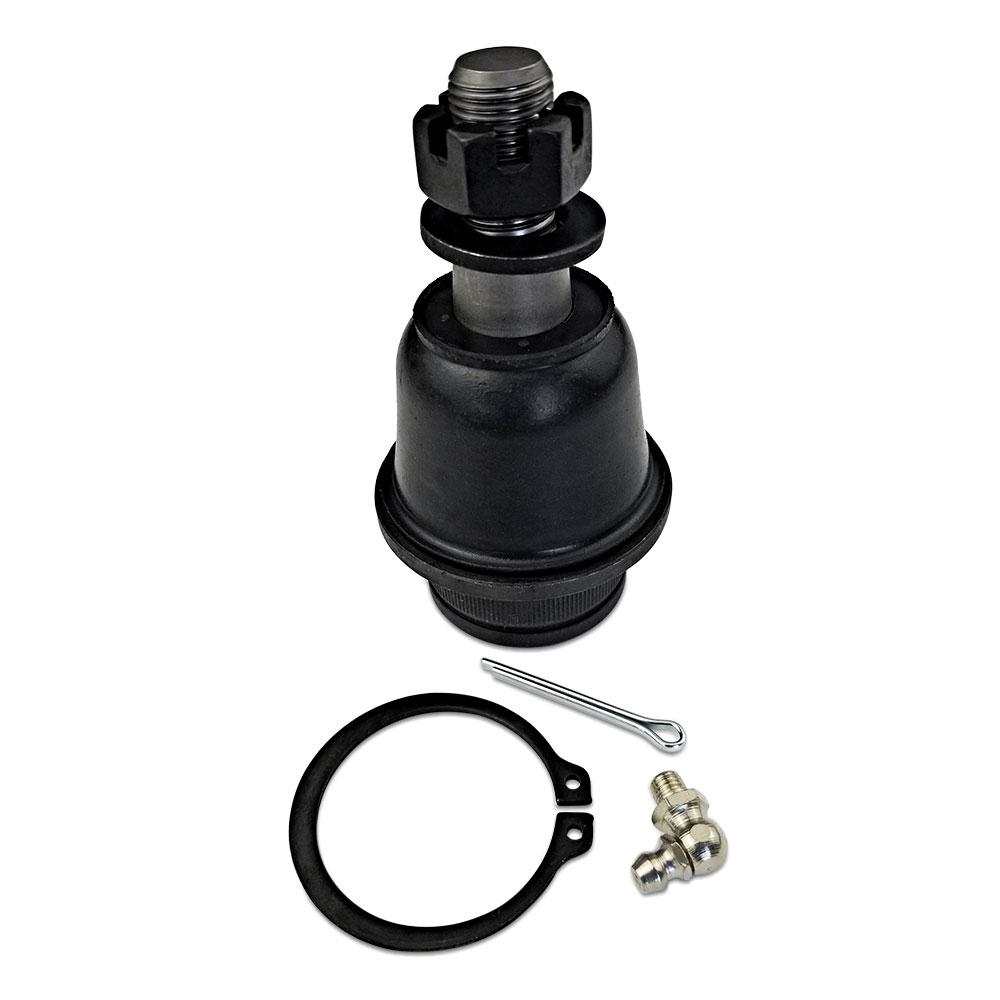

Heavy Duty Front Upper Ball Joint Fits: 99-15 Chevy/GMC - Apex Chassis - BJ123

Chevy/GMC Front Upper Ball Joint Apex Chassis. At APEX we like to say our quality is not consistent, it's constantly evolving. We rely entirely on engineering, in-house and off-road testing as well as customer feedback to decide on the best design and materials to choose.

What It Fits:


Cadillac Escalade (2002-2014) 2WD or 4WD


Cadillac Escalade ESV (2003-2014) 2WD or 4WD


Cadillac Escalade EXT (2002-2013) 2WD or 4WD


Chevrolet Avalanche (2007-2010) 2WD or 4WD 02-06 Avalanche 1500


Chevrolet Express 1500 (2003-2014) 2WD


Chevrolet Express 2500 (2003-2005) 2WD


Chevrolet Silverado 1500 (2007-2015) 2WD or 4WD


Chevrolet Silverado 1500 (1999-2006) 4WD


Chevrolet Silverado 1500 (2003-2005) AWD


Chevrolet Silverado 1500 (2004-2006) 2WD


Chevrolet Silverado 1500 Classic (2007) 2WD or 4WD


Chevrolet Suburban 1500 (2000-2013) 2WD or 4WD


Chevrolet Tahoe (2000-2015) 2WD or 4WD


GMC Savana 1500 (2003-2012) 2WD


GMC Savana 2500 (2003-2005) 2WD


GMC Sierra 1500 (2007-2015) 2WD or 4WD


GMC Sierra 1500 (1999-2006) 4WD


GMC Sierra 1500 (2001-2006) AWD


GMC Sierra 1500 (2004-2006) 2WD


GMC Sierra 1500 Classic (2007) 2WD or 4WD


GMC Yukon (2000-2014) 2WD or 4WD


GMC Yukon XL 1500 (2000-2014) 2WD or 4WD


Phosphate Finish: Extremely durable. Double coated. Rugged look.

Grade 8 - Class 10.9 Hardware: Superior tensile strength

Castle Nut: Industry standard where high vibration loads occur.

SAE 1045 Solid Steel Forged Housing: This is unequivocally the best carbon alloy steel for this application.

Knurled Housings: The preferred design for aftermarket installations.

CNC Machined Housing: Make our parts and bearings dimensionally perfect, eliminating any die wear issues.

Military Grade Acetal Bearing: The same bearing material spec'd by the US military for Hummer ball joints. This material is: dimensionally stable (doesn't expand or contract with hot or cold, water or oil absorption), it can be polished smooth as steel, is anti-friction, Doesn't wear itself out under load like metal on metal, and can take an absolute pounding.

SAE 4140 hot forged Chromoly Ball Studs: For the strongest possible metallurgy.

Induction Heat Treated Ball Studs: Provides a very precise heat treatment to the exact depth and location we want it.

Polished Ball Studs: Are built like an anti-friction bearing with extremely precise tolerances.

Rolled Threads: Are made by pressing the shape of the threads into the ball stud instead of cutting. This strengthens the threads instead of weakening them and allows for easy movement of hardware. This ain't no Ikea furniture!

Step Threads: allows for very easy movement of hardware on install and superior holding when torqued (installer choice).

CR Rubber Boots: The most durable material for undecar applications. Resistant to deterioration from road level ozone, oil/gas/engine fluids and extreme heat or cold

Compression Boot

Pre threaded Zerk Housing: If you have ever installed a MOOG Ball Joint without a pre-threaded zerk fitting you will understand what a simple but great feature this is. Another installer fav.

Greaseable: Because it should be.

Pre-Greased: Just in case you forget, we have you covered.

Gull Winged Grease Grooves: Allows for improved lubrication disbursement around the ball stud.

Zerk Fittings: Included for every application.
