Suspension Shock Absorber - aFe Power - 56000-0310-3L

2.5 Bypass Shock

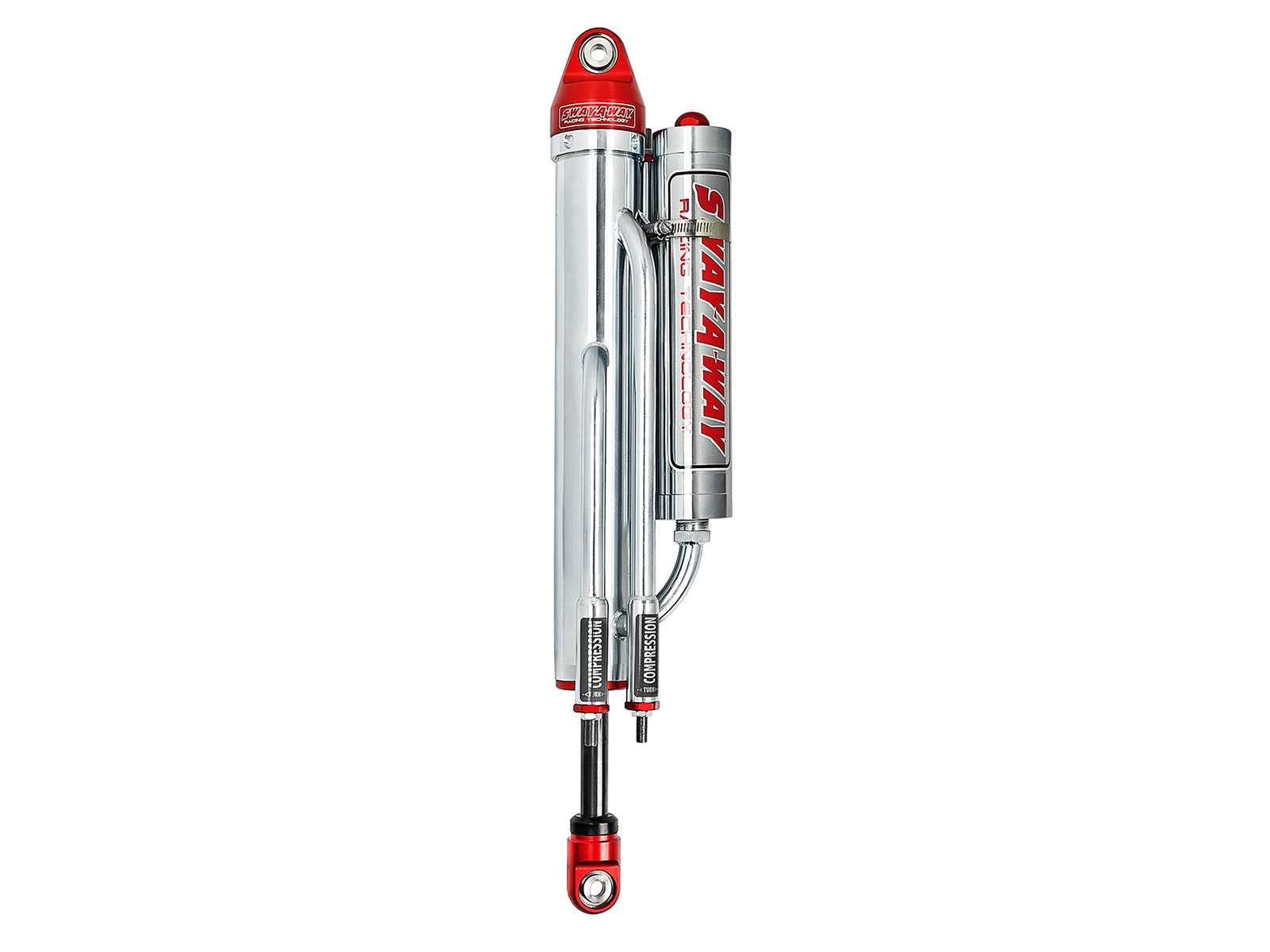

Sway-A-Way Bypass Shock 2.5 (Left Side)
Available to Order
Sway-A-Way 2.5 Bypass Shock 3-Tube w/ Piggyback Res. Left Side - 10 IN Stroke
aFe Control is proud to release the Sway-A-Way line of High Performance Universal Race Shocks. These 2.5" diameter Bypass Shocks feature 20+ years of Research and Development and have been tested in just about every different type of vehicle. Sway A Way shocks are 100% designed and built in the USA that feature zinc plated and clear coated steel cylinder bodies for exceptional corrosion resistance and Red anodized CNC machined aluminum comp onents. The 7/8" Nitrobrite steel shafts are polished for long seal life and are harder than standard chrome shafts. These position sensitive bypass shocks have 2 compression tubes and 1 rebound tube to allow for nearly infinate external tuning to allow for the ride quality that suits your specific needs. Bypass shocks are avalible piggyback reservoirs for easy mounting, or remote reservoirs when space is limited.
CNC Machined Components Made To The Strictest Tolerances
7/8 in. Polished Nitro Steel Shafts For Strength and Durability
Piggyback Reservoirs For Easy Installation
Adjustable And Rebuildable Using Simple Tools
2.5 in. Dia. Triple Bypass For Position Sensitive Dampening
Externally Adjustable Bypass Technology
Multi-Seal Carrier To Ensure Zero Leakage
Specially Formulated 7Wt. Fully Synthetic Shock Oil
Left Side
10 in.CNC Machined Components Made To The Strictest Tolerances; 7/8 in. Polished Nitro Steel Shafts For Strength and Durability; Piggyback Reservoirs For Easy Installation; Adjustable And Rebuildable Using Simple Tools; 2.5 in. Dia. Triple Bypass For Position Sensitive Dampening; Externally Adjustable Bypass Technology; Multi-Seal Carrier To Ensure Zero Leakage; Specially Formulated 7Wt. Fully Synthetic Shock Oil; Left Side; 10 in.
Boot Included: No
Compressed Length: 16.36
Extended Length: 26.40
Gas Charged: Yes
Lower Eyelet Diameter: 12
Lower Mount Type: Eyelet
Lower Mount Width: 1.50
Position: Left
Reservoir Type: PIGGYBACK
Shaft Color: Black
Shaft Diameter: 0.875
Shaft Finish: NitroBrite
Shaft Material: Nitro Steel
Shock Body Diameter: 2.5
Shock Travel Length: 10
Shock Type: Bypass
Upper Eyelet Diameter: 12
Upper Mount Type: Eyelet
Upper Mount Width: 1.50
WARNING CA Proposition 65: Yes
WARNING CA Proposition 65 Message: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
