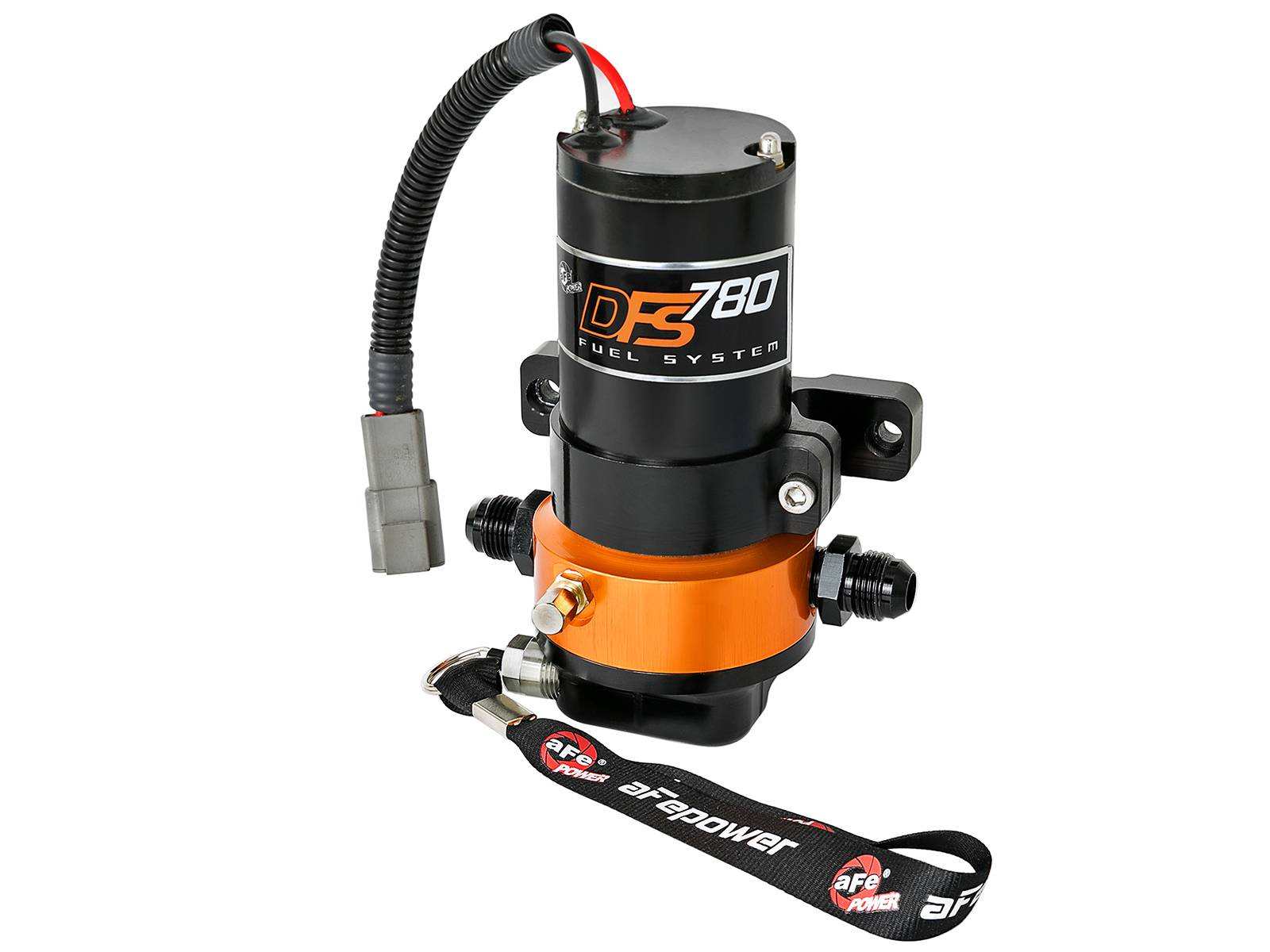

DFS780 MAX Lift Pump
DFS780 MAX Diesel Fuel System Lift Pump
Available to Order
DFS780 MAX Universal Fuel Pump (10-20 PSI)
aFe's DFS780 MAX is our compact designed, universal fit, diesel fuel lift pump that delivers big performance at a small price compared to the other brands. Available for your Duramax, Power Stroke or Cummins diesel, the DFS780 MAX delivers up to 187 GPH (gallons per hour) and features professional level components such as a high-pressure Viton seal, CNC machined manifold passages and heavy gauge wire harness to ensure improved throttle response. The DFS780 MAX also features an externally adjustable pressure regulator to adjust output pressure (5-25 psi) and a built-in pressure port to easily measure fuel pressure. The DFS780 MAX makes installation simple with plug-n-play connections, rivet nuts and installation tool and requires no cutting or modifications to the stock fuel lines or fuel tank so the vehicle can easily be returned to stock.
Rated Up To 187 Gallons Per Hour
Improves Throttle Response And Performance
Universal Billet Alum. Mounting Bracket Allows Secure Install
Helical Bronze Spur Gear Pump Design Ensure Quiet Operation
CNC Machined Manifold Passages Maintain High Flowrate
Individually Built And Tested
Made In The USA
Limited Lifetime WarrantyRated Up To 187 Gallons Per Hour; Improves Throttle Response And Performance; Universal Billet Alum. Mounting Bracket Allows Secure Install; Helical Bronze Spur Gear Pump Design Ensure Quiet Operation; CNC Machined Manifold Passages Maintain High Flowrate; Individually Built And Tested; Made In The USA; Limited Lifetime Warranty
Adapter Fittings Included: Yes
Bracket Included: Yes
Compatible Fuel Type: Diesel
Diameter: 3.10
Filter Included: No
Finish: Black Anodized
Flow Rate: 187
In Tank or External: External
Inlet Thread Diameter: 3/8
Inlet Type: NPT
Length: 6.17
Material: 6061-T6 Aluminum
Outlet Thread Diameter: 3/8
Outlet Type: NPT
Pressure Rating: 10-20
Pump Type: Electric
Strainer Included: No
Terminal Gender: Male
Terminal Type: Deutsch Connector
Voltage: 12V
WARNING CA Proposition 65: Yes
WARNING CA Proposition 65 Message: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
