21-24 Ford Bronco (2.3, 2.7) Suspension Kit - aFe Power - 301-5600-17-CA

Sway-A-Way Shock Kit
Sway-A-Way 2.5 Front Coilover Kit w/ Res
Suspension Kit

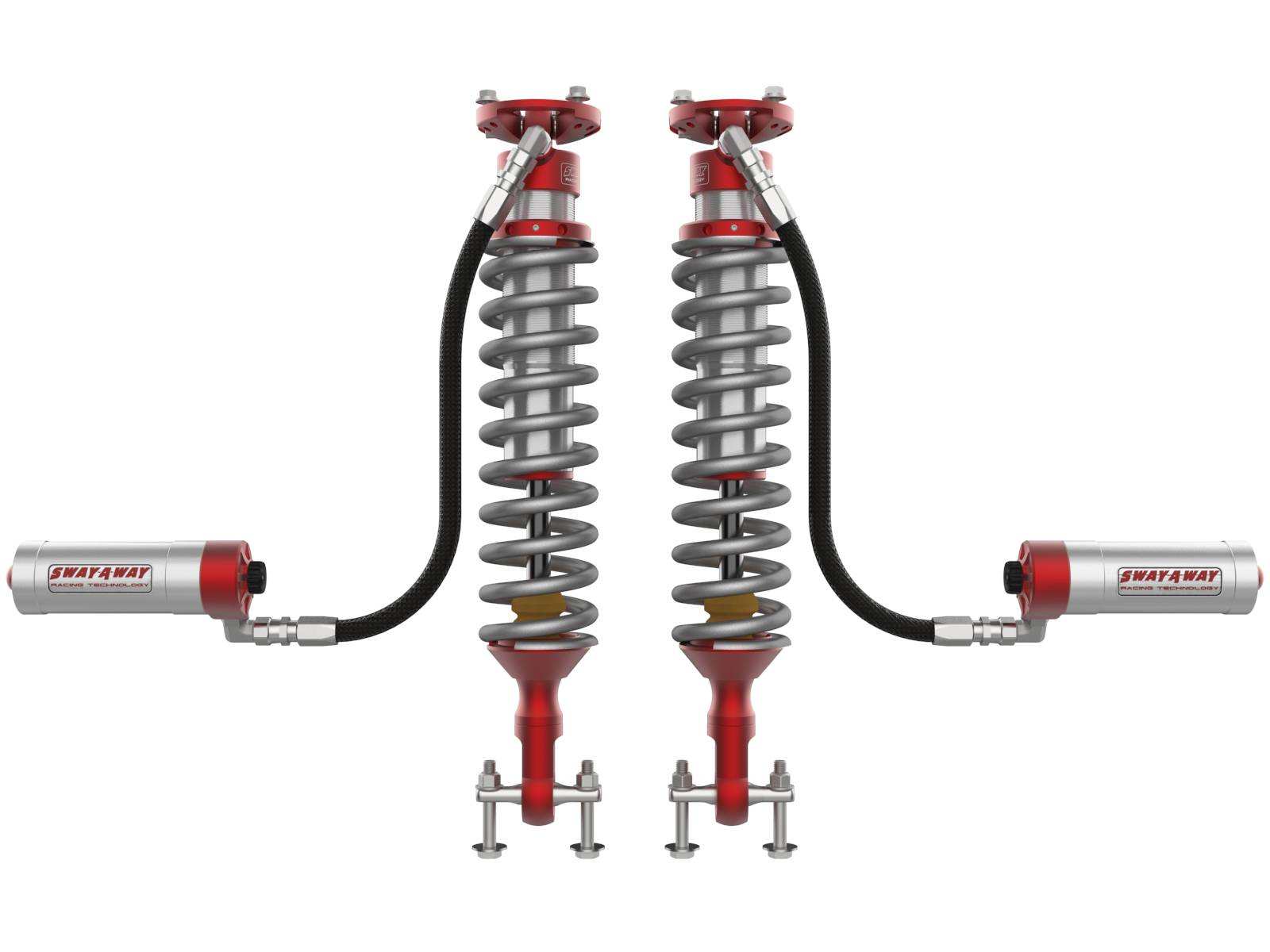

Sway-A-Way 2.5 Front Remote Reservoir Coilover Kit with Compression Adjusters
Ford Bronco 21-24
Sway-A-Way 2.5 Front Remote Reservoir Coilover Kit with Compression Adjusters Ford Bronco 21-24
aFe Control introduces these Sway-A-Way High Performance replacement Front Coilovers for the 6th Gen Ford Bronco. These specifically designed 2.5" diameter direct fit Coilovers feature the same race winning engineering and components that have 20+ years of testing. With application specific damping curves, these coilovers won’t sacrifice any on-road comfort or off-road control. This package is designed as a direct fit application and requires no modifications to the vehicle. These Sway-A-Way coilovers are designed to work with the factory upper control arm and allow for 10.5” of wheel travel, without binding CV or ball joints. (A set of aFe Control upper control arms are recommend if adjusting lift over 3.0”). The kit comes pre-set for 3.0" of lift, but includes a spanner wrench to adjust your ride height from 1.0 to 3.5 inches of lift, to find the perfect blend of performance and style. Sway-A-Way’s new 2.5 Series Mid-Speed Compression Adjusters mount directly into the remote reservoir. Offering 16 clicks of resolution, the compression adjuster can go from the unrestricted, fully open (soft) position, to the fully closed (hard) position - offering up to a 200% increase in damping force, in just two full turns of the GF polymer adjuster knob.
Rebound damping will remain unaffected regardless of the setting and valving combination chosen. Constructed from billet 6061-T6 aluminum, the red anodized and laser etched housing is built to withstand the harshest of environments with excellent corrosion resistance. The metering piston is CNC machined from 7075-T6 aluminum to provide the best service life for high-speed applications. Sway-A-Way’s mid-speed compression adjusters are an excellent solution for any application that varies weight often, or that might be used in a variety of terrains where a quick adjustment is desired for optimizing the comfort level of your ride. These front coilovers are 100% designed and built in the USA and feature high strength steel cylinders that are coated with a two-step zinc plated finish designed and salt spray tested to withstand the harshest of environments. A red anodized finish on all external CNC machined aluminum components will protect against the elements for years to come. The multi-seal carrier includes redundant seals to keep even the smallest dirt and debris out and keep the specifically formulated 7wt fully synthetic shock oil in. Viton O-rings ensure a leak free seal at the most extreme temperatures. Sway-A-Way shocks are easily rebuildable and revalveable by a trained professional. All seal kits, spare parts, and valve shims are available through aFeControl.com. All direct fit Sway-A-Way shocks come with a warranty that protects them against manufacturer defects.
Remote Reservoirs with Compression Adjusters
16 Clicks of Adjustability for up to +200% Damping
Specifically Formulated 7wt Fully Synthetic Shock Oil
Multi-Seal Carrier to Ensure Zero Leakage
Application Specific Damping Tuned for the Best On and Off-Road Control
7/8" Polished Nitro Steel Shafts for Strength and Durability
Completely Adjustable and Rebuildable Using Simple Tools
Direct Fit Installation, Requires No ModificationsRemote Reservoirs with Compression Adjusters; 16 Clicks of Adjustability for up to +200% Damping; Specifically Formulated 7wt Fully Synthetic Shock Oil; Multi-Seal Carrier to Ensure Zero Leakage; Application Specific Damping Tuned for the Best On and Off-Road Control; 7/8" Polished Nitro Steel Shafts for Strength and Durability; Completely Adjustable and Rebuildable Using Simple Tools; Direct Fit Installation, Requires No Modifications
Body Diameter: 2.5
Gas Charged: Yes
Lower Mount Type: Eyelet
Mounting Hardware Included: Yes
Position: Front
Upper Mount Type: Plate
WARNING CA Proposition 65: Yes
WARNING CA Proposition 65 Message: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Detailed Fitment Results
Year Make Model Submodel Body Type Name Drive Type Name Bed Length Inches 2021 Ford Bronco 2022 Ford Bronco 2023 Ford Bronco 2024 Ford Bronco
