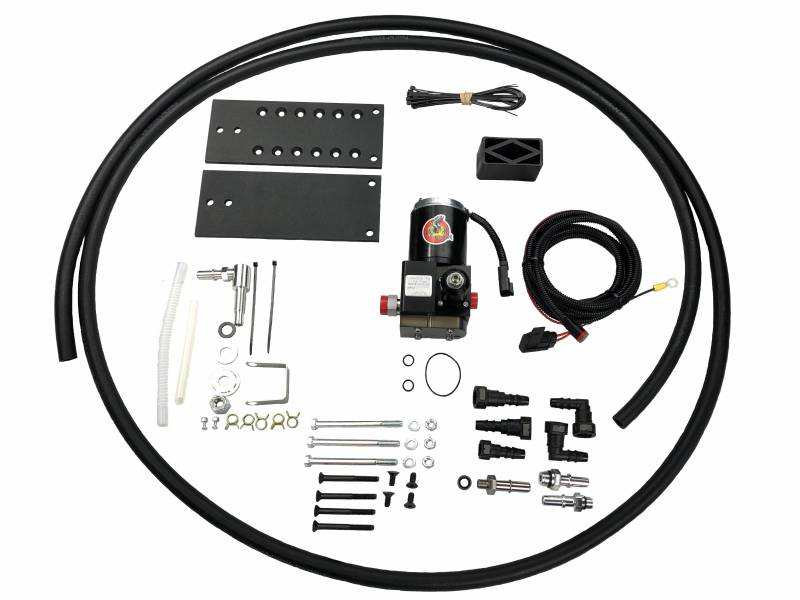

Diesel Lift Pump 150GPH Raptor RP-4G-150 2004.5-2018 Dodge Cummins - AirDog - R4SBD053

This is the Raptor-4G RP-150 fuel system for the 2004.5-2018 Common Rail Cummins. This system mounts to the frame rail using the supplied sandwich plate mounting system.

A Fuel Module Upgrade Kit is installed in the factory fuel basket to pull fuel through a factory-style 1/2 Inch bulkhead fitting. This will bypass the factory in-tank lift pump.

The pressure side connects directly into the side of the fuel filter housing on the engine block. These pumps are internally regulated and do not require a return line.

This is a 150GPH (Gallon Per Hour) fuel system for moderately modified trucks. Check out our installation manual for a list of parts that are included with this kit.

Details:


Gallons per hour: 150GPH

Manufacturer: Cummins

Make: Dodge

Liter: 6.7L

Valve: 24V

Engine Years: 2004.5-2018

Fuel Type: Diesel
