Out of Stock
AirdogSKU: BSD-ADP-A7SPBD255
Diesel Lift Pump 100GPH II-5G, DF-100-5G 2019-2024 RAM Cummins - AirDog - A7SPBD255
$1,134.72
Fitment Guide
20 matched applications
| Year | Make | Model | Submodel | Engine |
|---|---|---|---|---|
| 2019 | Ram | 2500 | — | 6.7L DIESEL |
| 2019 | Ram | 3500 | — | 6.7L DIESEL |
| 2019 | Ram | 4500 | — | 6.7L DIESEL |
| 2019 | Ram | 5500 | — | 6.7L DIESEL |
| 2020 | Ram | 2500 | — | 6.7L DIESEL |
| 2020 | Ram | 3500 | — | 6.7L DIESEL |
| 2020 | Ram | 4500 | — | 6.7L DIESEL |
| 2020 | Ram | 5500 | — | 6.7L DIESEL |
| 2021 | Ram | 2500 | — | 6.7L DIESEL |
| 2021 | Ram | 3500 | — | 6.7L DIESEL |
| 2021 | Ram | 4500 | — | 6.7L DIESEL |
| 2021 | Ram | 5500 | — | 6.7L DIESEL |
| 2022 | Ram | 2500 | — | 6.7L DIESEL |
| 2022 | Ram | 3500 | — | 6.7L DIESEL |
| 2022 | Ram | 4500 | — | 6.7L DIESEL |
| 2022 | Ram | 5500 | — | 6.7L DIESEL |
| 2023 | Ram | 2500 | — | 6.7L DIESEL |
| 2023 | Ram | 3500 | — | 6.7L DIESEL |
| 2023 | Ram | 4500 | — | 6.7L DIESEL |
| 2023 | Ram | 5500 | — | 6.7L DIESEL |
Shipping Estimate
Enter destination details for an instant shipping estimate. Final rates are confirmed at checkout.
Description

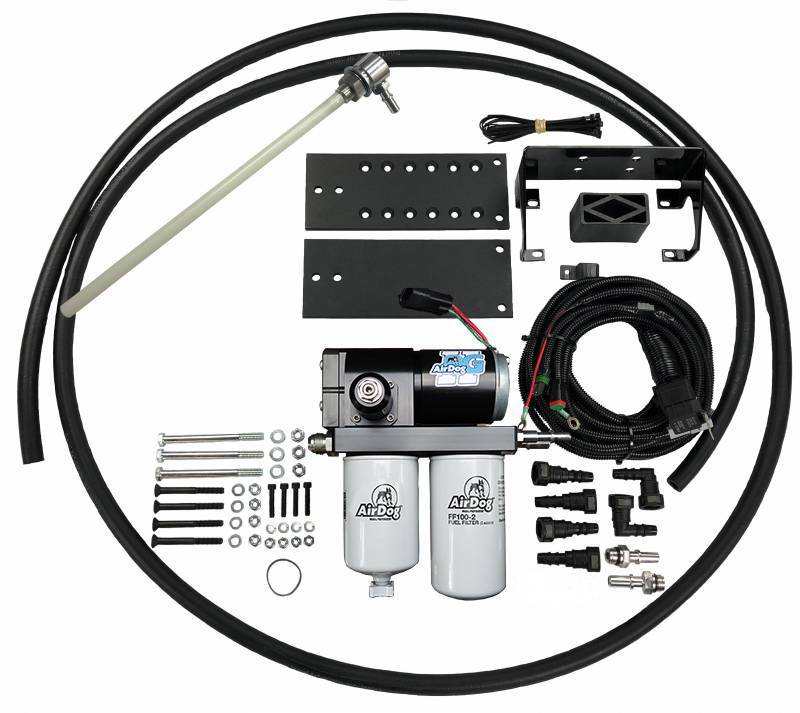

This is the AirDog II-5G DF-100 fuel system for the 2019-2020 RAM with the 6.7 Cummins. This diesel lift pump mounts to the frame rail using the supplied sandwich plate mounting system.
A Fuel Module Upgrade Kit is installed in the factory fuel basket to pull fuel through a, factory-style, 1/2 Inch bulkhead fitting. This will bypass the factory in-tank lift pump.
The pressure side connects directly into the side of the factory fuel filter housing. The AirDog Air/Vapor return is sent back to the tank through the factory 3/8 Inch suction line once the module is modified.
This is a 100GPH (Gallon Per Hour) lift pump system for stock fuel trucks. Check out our installation manual for a list of parts that are included with this kit.
Details:
Gallons per hour: 100GPH
Manufacturer: Cummins
Make: Dodge
Liter: 6.7L
Valve: 24V
Engine Years: 2019-2023
Fuel Type: Diesel
A Fuel Module Upgrade Kit is installed in the factory fuel basket to pull fuel through a, factory-style, 1/2 Inch bulkhead fitting. This will bypass the factory in-tank lift pump.
The pressure side connects directly into the side of the factory fuel filter housing. The AirDog Air/Vapor return is sent back to the tank through the factory 3/8 Inch suction line once the module is modified.
This is a 100GPH (Gallon Per Hour) lift pump system for stock fuel trucks. Check out our installation manual for a list of parts that are included with this kit.
Details:
Gallons per hour: 100GPH
Manufacturer: Cummins
Make: Dodge
Liter: 6.7L
Valve: 24V
Engine Years: 2019-2023
Fuel Type: Diesel
