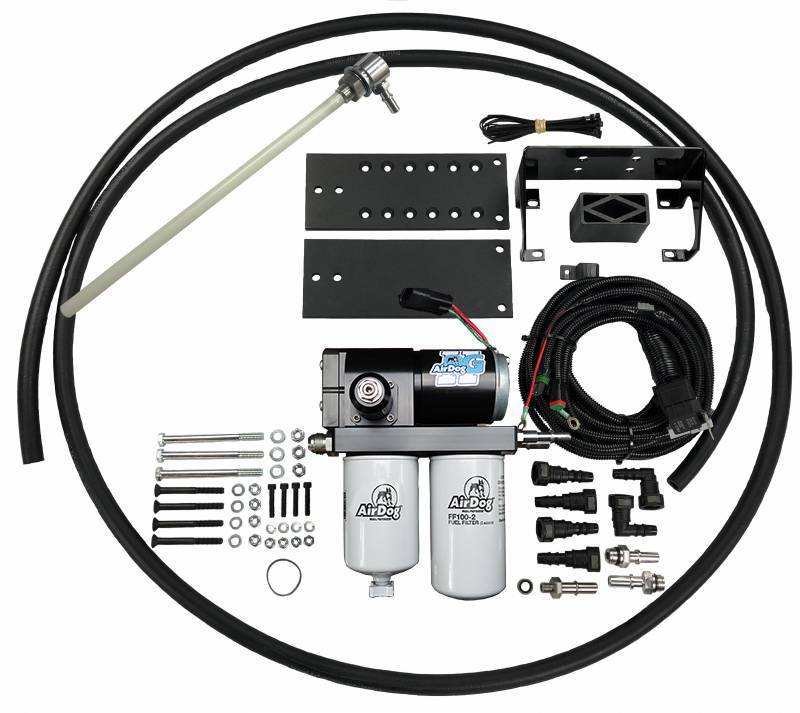

Diesel Lift Pump 100GPH II-5G, DF-100-5G 2004.5-2018 Dodge/RAM Cummins - AirDog - A7SPBD254

This is the AirDog II-5G DF-100-5G fuel system for the 2004.5-2018 Dodge Ram Common Rail Cummins. This diesel lift pump mounts to the frame rail using the supplied sandwich plate mounting system.

A Fuel Module Upgrade Kit is installed in the factory fuel basket to pull fuel through a factory-style 1/2 Inch bulkhead fitting. This will bypass the factory in-tank lift pump.

The pressure side connects directly into the side of the injection pump, bypassing the factory fuel filter housing. The AirDog Air/Vapor return is sent back to the tank through the factory 3/8 Inch suction line once the module is modified.

This is a 100GPH (Gallon Per Hour) lift pump system for stock fuel trucks. Check out our installation manual for a list of parts that are included with this kit.

Details:


Gallons per hour: 100GPH

Manufacturer: Cummins

Make: Dodge

Liter: 6.7L

Valve: 24V

Engine Years: 2004.5-2018

Fuel Type: Diesel
