AirdogSKU: BSD-ADP-A7SABF595
Diesel Lift Pump 220GPH II-5G, DF-220-5G 2008-2010 6.4L Ford - AirDog - A7SABF595
Fitment Guide
12 matched applications
| Year | Make | Model | Submodel | Engine |
|---|
| 2008 | Ford | F-250 Super Duty | — | 6.4L DIESEL |
| 2008 | Ford | F-350 Super Duty | — | 6.4L DIESEL |
| 2008 | Ford | F-450 Super Duty | — | 6.4L DIESEL |
| 2008 | Ford | F-550 Super Duty | — | 6.4L DIESEL |
| 2009 | Ford | F-250 Super Duty | — | 6.4L DIESEL |
| 2009 | Ford | F-350 Super Duty | — | 6.4L DIESEL |
| 2009 | Ford | F-450 Super Duty | — | 6.4L DIESEL |
| 2009 | Ford | F-550 Super Duty | — | 6.4L DIESEL |
| 2010 | Ford | F-250 Super Duty | — | 6.4L DIESEL |
| 2010 | Ford | F-350 Super Duty | — | 6.4L DIESEL |
| 2010 | Ford | F-450 Super Duty | — | 6.4L DIESEL |
| 2010 | Ford | F-550 Super Duty | — | 6.4L DIESEL |
Description
This is the AirDog II-5G DF-220-5G fuel system for the 2008-2010 Ford 6.4L Powerstroke. This diesel lift pump mounts to the frame rail using the supplied sandwich plate mounting system.
This system uses a 5/8 Inch draw straw to pull fuel from the tank. The pressure side connects to the factory supply line on the frame rail.
This fuel pump completely bypasses the factory fuel pump. The AirDog Air/Vapor return is sent back to the tank through a return Y that splices the AirDog return into the factory engine return.

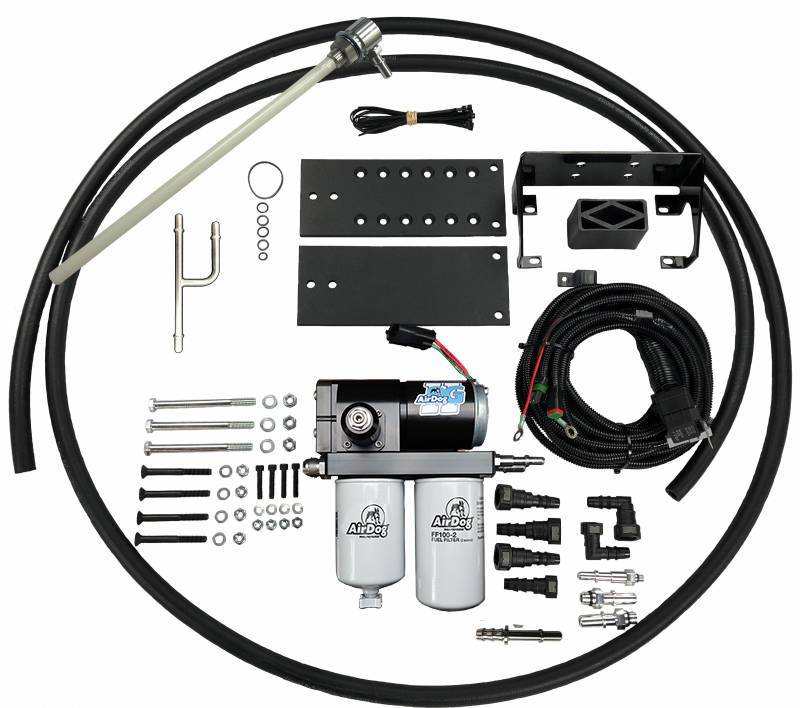

This is a 220GPH (Gallon Per Hour) lift pump system for highly modified trucks. Check out our installation manual for a list of parts that are included with this kit.
Details:
Gallons per hour: 220GPH
Manufacturer: Powerstroke
Make: Ford
Liter: 6.4L
Engine Years: 2008-2010
Fuel Type: Diesel
