Out of Stock
AirdogSKU: BSD-ADP-A7SABF590

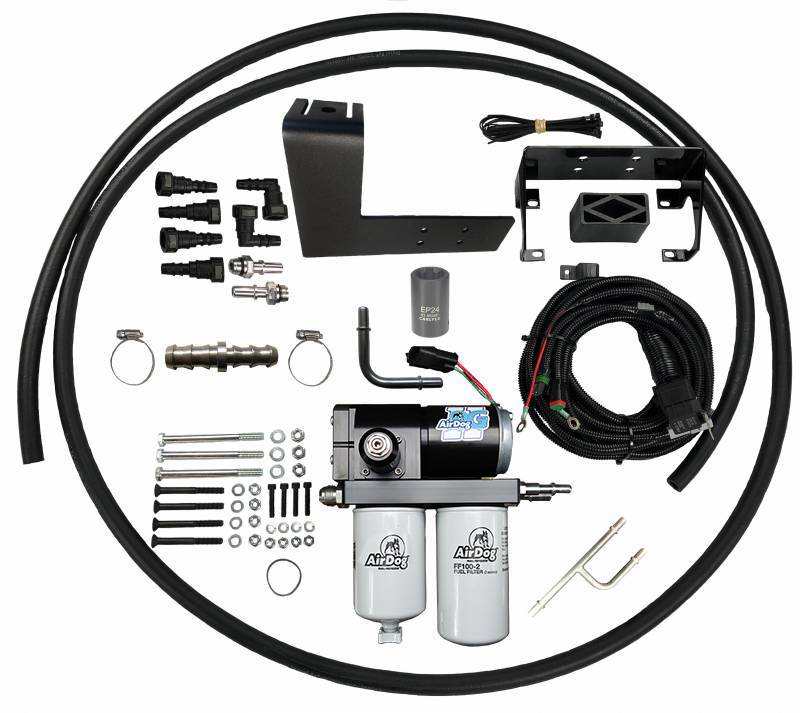

Diesel Lift Pump 165GPH II-5G, DF-165-5G 2017 - 2022 6.7L Ford - AirDog - A7SABF590
$1,229.76
Shipping Estimate
Enter destination details for an instant shipping estimate. Final rates are confirmed at checkout.
Description
The AirDog II-5G for this application uses a bed bracket to be mounted inside the bed forward of the rear wheel. The fuel module is to be modified to allow the venturi fill system to work to ensure no 1/4 tank issues.
The pump draws fuel from the modified fuel module and sends it to the factory frame rail feed line. The pressure line is tapped with a return y to feed the venturi in the basket with pressurized fuel.
The AirDog return is sent back to the modified fuel module. This is a 165GPH (Gallon Per Hour) lift pump system for moderately modified trucks.
Check out the most current installation manual below for a list of parts that are included in this kit.
Details:
Gallons per hour: 165GPH
Manufacturer: Powerstroke
Make: Ford
Liter: 6.7L
Engine Years: 2017-2023
Fuel Type: Diesel
The pump draws fuel from the modified fuel module and sends it to the factory frame rail feed line. The pressure line is tapped with a return y to feed the venturi in the basket with pressurized fuel.
The AirDog return is sent back to the modified fuel module. This is a 165GPH (Gallon Per Hour) lift pump system for moderately modified trucks.
Check out the most current installation manual below for a list of parts that are included in this kit.
Details:
Gallons per hour: 165GPH
Manufacturer: Powerstroke
Make: Ford
Liter: 6.7L
Engine Years: 2017-2023
Fuel Type: Diesel
