AirdogSKU: BSD-ADP-A7SABD528
Diesel Lift Pump 220GPH II-5G, DF-220-5G 1998.5-2004 Dodge Cummins - AirDog - A7SABD528
Fitment Guide
14 matched applications
| Year | Make | Model | Submodel | Engine |
|---|
| 2001 | Dodge | Ram 3500 | — | 5.9L DIESEL |
| 2002 | Dodge | Ram 3500 | — | 5.9L DIESEL |
| 2003 | Dodge | Ram 2500 | — | 5.9L DIESEL |
| 2003 | Dodge | Ram 3500 | — | 5.9L DIESEL |
| 2004 | Dodge | Ram 2500 | — | 5.9L DIESEL |
| 2004 | Dodge | Ram 3500 | — | 5.9L DIESEL |
| 1998 | Dodge | Ram 2500 | — | 5.9L DIESEL |
| 1998 | Dodge | Ram 3500 | — | 5.9L DIESEL |
| 1999 | Dodge | Ram 2500 | — | 5.9L DIESEL |
| 1999 | Dodge | Ram 3500 | — | 5.9L DIESEL |
| 2000 | Dodge | Ram 2500 | — | 5.9L DIESEL |
| 2000 | Dodge | Ram 3500 | — | 5.9L DIESEL |
| 2001 | Dodge | Ram 2500 | — | 5.9L DIESEL |
| 2002 | Dodge | Ram 2500 | — | 5.9L DIESEL |
Description

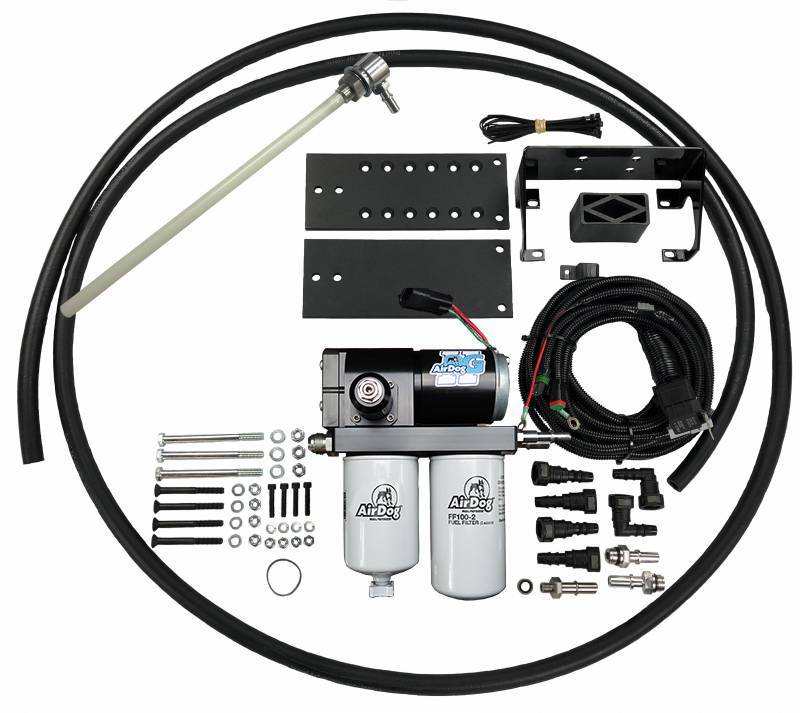

This is the AirDog II-5G DF-220-5G fuel system for the 1998.5-2004 Dodge Ram VP-44 and early CP3 5.9L Cummins. This diesel lift pump mounts to the frame rail using the supplied sandwich plate mounting system.
A 5/8 Inch draw straw is used to pull fuel from the tank. The pressure side connects directly into the side of the injection pump, bypassing the factory fuel filter housing.
The AirDog Air/Vapor return is sent back to the tank through a filler neck tee. This is a 220GPH (Gallon Per Hour) lift pump system for highly modified trucks.
Check out our installation manual for a list of parts that are included with this kit.
Details:
Gallons per hour: 220GPH
Manufacturer: Cummins
Make: Dodge
Liter: 5.9L
Valve: 24V
Engine Years: 1998.5-2004
Fuel Type: Diesel
