AirdogSKU: BSD-ADP-A7SABD524
Diesel Lift Pump 165GPH II-5G, DF-165-5G 1994-1998 Dodge Cummins - AirDog - A7SABD524
Fitment Guide
10 matched applications
| Year | Make | Model | Submodel | Engine |
|---|
| 1994 | Dodge | Ram 2500 | — | 5.9L DIESEL |
| 1998 | Dodge | Ram 2500 | — | 5.9L DIESEL |
| 1997 | Dodge | Ram 3500 | — | 5.9L DIESEL |
| 1997 | Dodge | Ram 2500 | — | 5.9L DIESEL |
| 1996 | Dodge | Ram 3500 | — | 5.9L DIESEL |
| 1996 | Dodge | Ram 2500 | — | 5.9L DIESEL |
| 1995 | Dodge | Ram 3500 | — | 5.9L DIESEL |
| 1995 | Dodge | Ram 2500 | — | 5.9L DIESEL |
| 1994 | Dodge | Ram 3500 | — | 5.9L DIESEL |
| 1998 | Dodge | Ram 3500 | — | 5.9L DIESEL |
Description

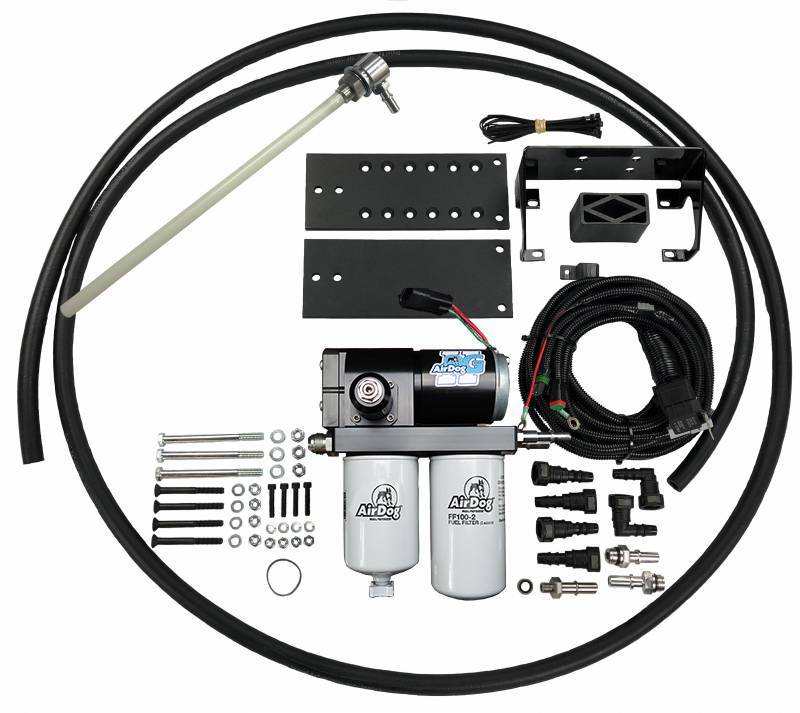

This is the AirDog II-5G DF-165-5G fuel system for the 1994-1998 Dodge Ram P-Pump 12V Cummins. This diesel lift pump mounts to the frame rail using the supplied sandwich plate mounting system.
A draw straw is installed in the fuel tank to supply fuel to the pump. The pressure side connects directly into the side of the P-Pump, bypassing the factory fuel filter housing and block mounted pump.
The injection pump return is tied into the engine return to eliminate the need for the factory filter head. The AirDog Air/Vapor return is sent back to the tank through the filler neck return tee.
This is a 165GPH (Gallon Per Hour) lift pump system for moderately modified trucks. Check out our installation manual for a list of parts that are included with this kit.
Details:
Gallons per hour: 165GPH
Manufacturer: Cummins
Make: Dodge
Liter: 5.9L
Valve: 12V
Engine Years: 1994-1998.5
Fuel Type: Diesel
