Out of Stock
AirdogSKU: BSD-ADP-A7SABC512
Diesel Lift Pump 220GPH II-5G, DF-220-5G 2001-2010 Chevy Duramax - AirDog - A7SABC512
$1,229.76
Fitment Guide
16 matched applications
| Year | Make | Model | Submodel | Engine |
|---|---|---|---|---|
| 2004 | Chevrolet | Silverado 3500 | — | 6.6L DIESEL |
| 2004 | Chevrolet | Silverado 2500 HD | — | 6.6L DIESEL |
| 2003 | GMC | Sierra 3500 | — | 6.6L DIESEL |
| 2003 | GMC | Sierra 2500 HD | — | 6.6L DIESEL |
| 2003 | Chevrolet | Silverado 3500 | — | 6.6L DIESEL |
| 2003 | Chevrolet | Silverado 2500 HD | — | 6.6L DIESEL |
| 2002 | GMC | Sierra 3500 | — | 6.6L DIESEL |
| 2004 | GMC | Sierra 3500 | — | 6.6L DIESEL |
| 2001 | Chevrolet | Silverado 2500 HD | — | 6.6L DIESEL |
| 2001 | Chevrolet | Silverado 3500 | — | 6.6L DIESEL |
| 2001 | GMC | Sierra 2500 HD | — | 6.6L DIESEL |
| 2001 | GMC | Sierra 3500 | — | 6.6L DIESEL |
| 2002 | Chevrolet | Silverado 2500 HD | — | 6.6L DIESEL |
| 2002 | Chevrolet | Silverado 3500 | — | 6.6L DIESEL |
| 2002 | GMC | Sierra 2500 HD | — | 6.6L DIESEL |
| 2004 | GMC | Sierra 2500 HD | — | 6.6L DIESEL |
Shipping Estimate
Enter destination details for an instant shipping estimate. Final rates are confirmed at checkout.
Description

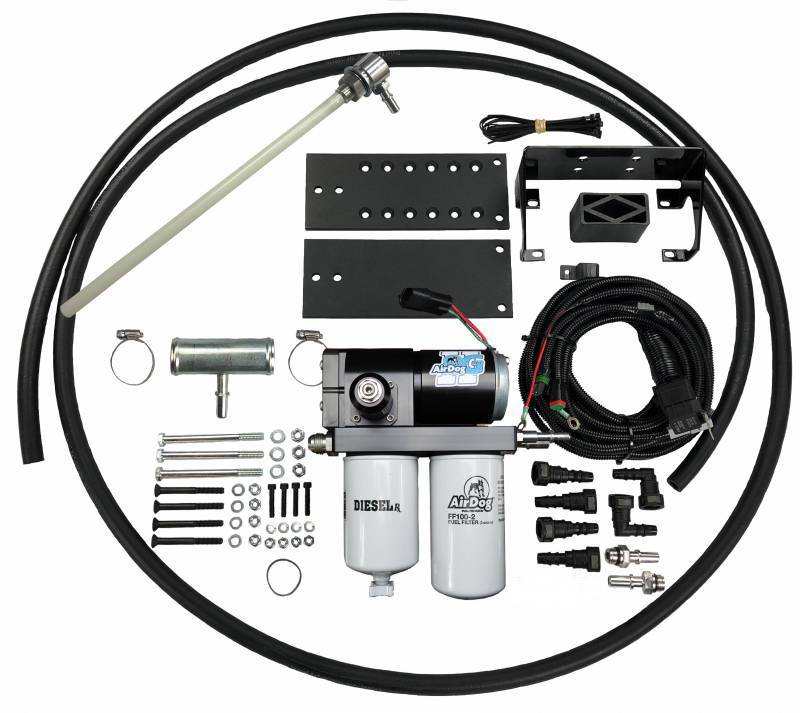

This is the AirDog II-5G DF-220-5G fuel system for the 2001-2010 Chevy/GMC Duramax 6.6L Diesel. This diesel lift pump mounts to the frame rail using the supplied sandwich plate mounting system.
The suction side hooks up to the factory suction fitting in the fuel module. The pressure side connects directly to the factory injection pump feed line on the frame.
The AirDog Air/Vapor return is sent back to the tank through a filler neck tee. This system is one of our easiest installations.
Our Duramax kits usually see the largest performance gains as these trucks do not come with a lift pump from the factory. This is a 220GPH (Gallon Per Hour) lift pump system for moderately modified trucks.
Check out our installation manual for a list of parts that are included with this kit.
Details:
Gallons per hour: 220GPH
Manufacturer: Duramax
Make: GM/Chevy
Liter: 6.6L
Engine Version: LB7
Engine Years: 2001-2004
Fuel Type: Diesel
The suction side hooks up to the factory suction fitting in the fuel module. The pressure side connects directly to the factory injection pump feed line on the frame.
The AirDog Air/Vapor return is sent back to the tank through a filler neck tee. This system is one of our easiest installations.
Our Duramax kits usually see the largest performance gains as these trucks do not come with a lift pump from the factory. This is a 220GPH (Gallon Per Hour) lift pump system for moderately modified trucks.
Check out our installation manual for a list of parts that are included with this kit.
Details:
Gallons per hour: 220GPH
Manufacturer: Duramax
Make: GM/Chevy
Liter: 6.6L
Engine Version: LB7
Engine Years: 2001-2004
Fuel Type: Diesel
