Out of Stock
AirdogSKU: BSD-ADP-A4SPBD109
Diesel Lift Pump FP-150-4G 2019-2024 RAM Cummins - AirDog - A4SPBD109
$1,038.24
Fitment Guide
20 matched applications
| Year | Make | Model | Submodel | Engine |
|---|---|---|---|---|
| 2022 | Ram | 3500 | — | 6.7L DIESEL |
| 2019 | Ram | 2500 | — | 6.7L DIESEL |
| 2019 | Ram | 3500 | — | 6.7L DIESEL |
| 2019 | Ram | 4500 | — | 6.7L DIESEL |
| 2019 | Ram | 5500 | — | 6.7L DIESEL |
| 2020 | Ram | 2500 | — | 6.7L DIESEL |
| 2020 | Ram | 3500 | — | 6.7L DIESEL |
| 2020 | Ram | 4500 | — | 6.7L DIESEL |
| 2020 | Ram | 5500 | — | 6.7L DIESEL |
| 2021 | Ram | 2500 | — | 6.7L DIESEL |
| 2021 | Ram | 3500 | — | 6.7L DIESEL |
| 2021 | Ram | 4500 | — | 6.7L DIESEL |
| 2021 | Ram | 5500 | — | 6.7L DIESEL |
| 2022 | Ram | 2500 | — | 6.7L DIESEL |
| 2022 | Ram | 4500 | — | 6.7L DIESEL |
| 2022 | Ram | 5500 | — | 6.7L DIESEL |
| 2023 | Ram | 2500 | — | 6.7L DIESEL |
| 2023 | Ram | 3500 | — | 6.7L DIESEL |
| 2023 | Ram | 5500 | — | 6.7L DIESEL |
| 2023 | Ram | 4500 | — | 6.7L DIESEL |
Shipping Estimate
Enter destination details for an instant shipping estimate. Final rates are confirmed at checkout.
Description

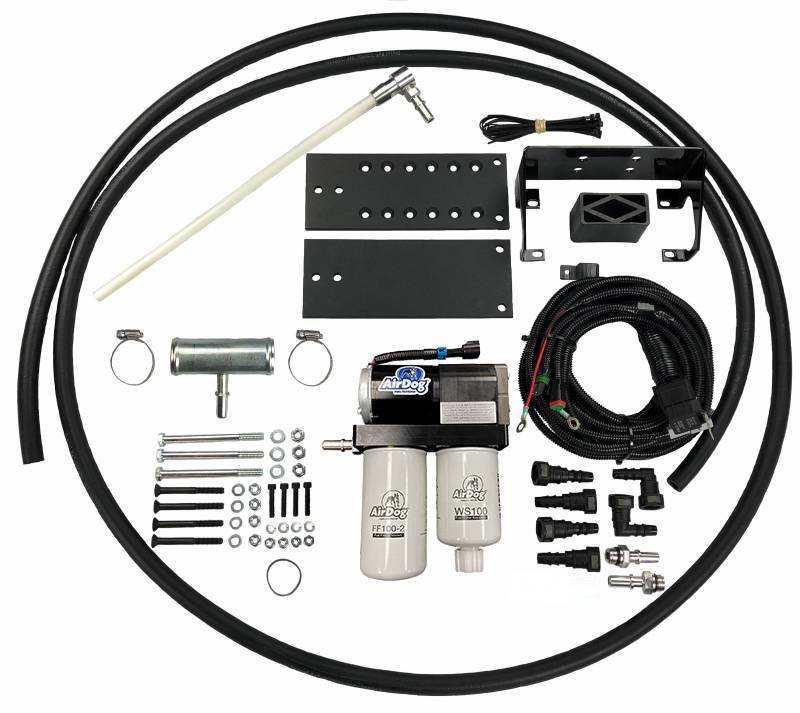

This is the AirDog I FP-150-4G fuel system for the 2019-2020 RAM with the Common Rail Cummins. This diesel lift pump mounts to the frame rail using the supplied sandwich plate mounting system.
A 1/2 Inch draw straw is used to pull fuel from the tank, bypassing the intank fuel pump. The pressure side connects directly to the factory fuel filter housing.
The AirDog Air/Vapor return is sent back to the tank through a filler neck tee. This is a 150GPH (Gallon Per Hour) lift pump system.
Check out our installation manual for a list of parts that are included with this kit.
Details:
Gallons per hour: 150GPH
Manufacturer: Cummins
Make: Dodge
Liter: 6.7L
Valve: 24V
Engine Years: 2019-2023
Fuel Type: Diesel
A 1/2 Inch draw straw is used to pull fuel from the tank, bypassing the intank fuel pump. The pressure side connects directly to the factory fuel filter housing.
The AirDog Air/Vapor return is sent back to the tank through a filler neck tee. This is a 150GPH (Gallon Per Hour) lift pump system.
Check out our installation manual for a list of parts that are included with this kit.
Details:
Gallons per hour: 150GPH
Manufacturer: Cummins
Make: Dodge
Liter: 6.7L
Valve: 24V
Engine Years: 2019-2023
Fuel Type: Diesel
