AirdogSKU: BSD-ADP-A4SPBC185
Diesel Lift Pump 100GPH FP-100-4G 2001-2010 Chevy Duramax - AirDog - A4SPBC185
Fitment Guide
4 matched applications
| Year | Make | Model | Submodel | Engine |
|---|
| 2006 | Chevrolet | Silverado 2500 HD | — | 6.6L DIESEL |
| 2006 | GMC | Sierra 3500 | — | 6.6L DIESEL |
| 2006 | GMC | Sierra 2500 HD | — | 6.6L DIESEL |
| 2006 | Chevrolet | Silverado 3500 | — | 6.6L DIESEL |
Description

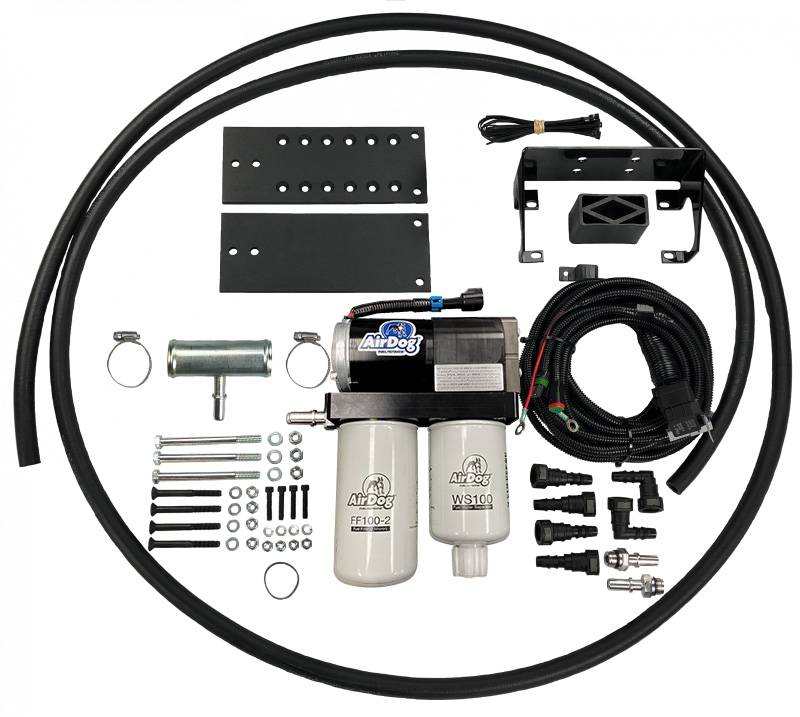

This is the AirDog I FP-100-4G fuel system for the 2001-2010 Chevy/GMC Duramax 6.6L. This diesel lift pump mounts to the frame rail using the supplied sandwich plate mounting system.
This system utilizes the factory suction port in the fuel module for suction and plugs into the factory fuel line on the pressure side to supply fuel to the CP3 injection pump. The return is sent back to the tank through a filler neck tee.
This is one of the easiest fuel systems to install. This is a 100GPH (Gallon Per Hour) lift pump system.
Check out our installation manual for a list of parts that are included with this kit.
Details:
Gallons per hour: 100GPH
Manufacturer: Duramax
Make: GM/Chevy
Liter: 6.6L
Engine Version: LLY
Engine Years: 2006-2007
Fuel Type: Diesel
