2004.5-2005 Chevrolet / GMC Max Air Flow Bundle - HSP Diesel - 283-HSP

This kit will allow you and your engine to breathe easy. Featuring a mandrel-bent 4.5-inch LBZ style intake tube for massive airflow gains, with HSP's signature heat shield Box eliminating unwanted hot air entering the cold air intake. For every 1-degree increase in intake air temperature will result in a 3hp loss. This kit also features HSP's high flow turbo mouthpiece.

This turbo mouthpiece will give you the ability to reroute your factory PCV system and remove the factory resonator Box, eliminating unwanted engine oil gumming up the turbo and intake system (PCV re-route sold separately see 003-1-HSP). Also included is our 3-inch mandrel bent hot side and cold side tubes with our easy to install two-piece Y-bridge with race-proven 5 layer silicone boots so you can be ensured a great fit that won't let you down. The factory hot side intercooler tube is only 2.25 inches in diameter and has a 90-degree boot at the intercooler that is prone to failure.

With this routing there is a possibility of the hot side intercooler tube rubbing on the power steering line, causing the line to rub a hole in the tube resulting in a boost leak. HSP's solution to this problem is to run the hot side tube directly into the intercooler resulting in lower temperatures, better airflow, and added clearance in tight places.

Our 3-inch cold side tube will ensure your engine gets all the air it wants. Ours bolted together two-piece Y-bridge will make installation a breeze and ensure a leak-free seal that won't leave you on the side of the road. We have also included one of our 2-inch passenger sides up pipes featuring .120 inch tubing and the best bellow on the market. The factory up-pipe is prone to failure at the riser caused by excessive heat and pressure.

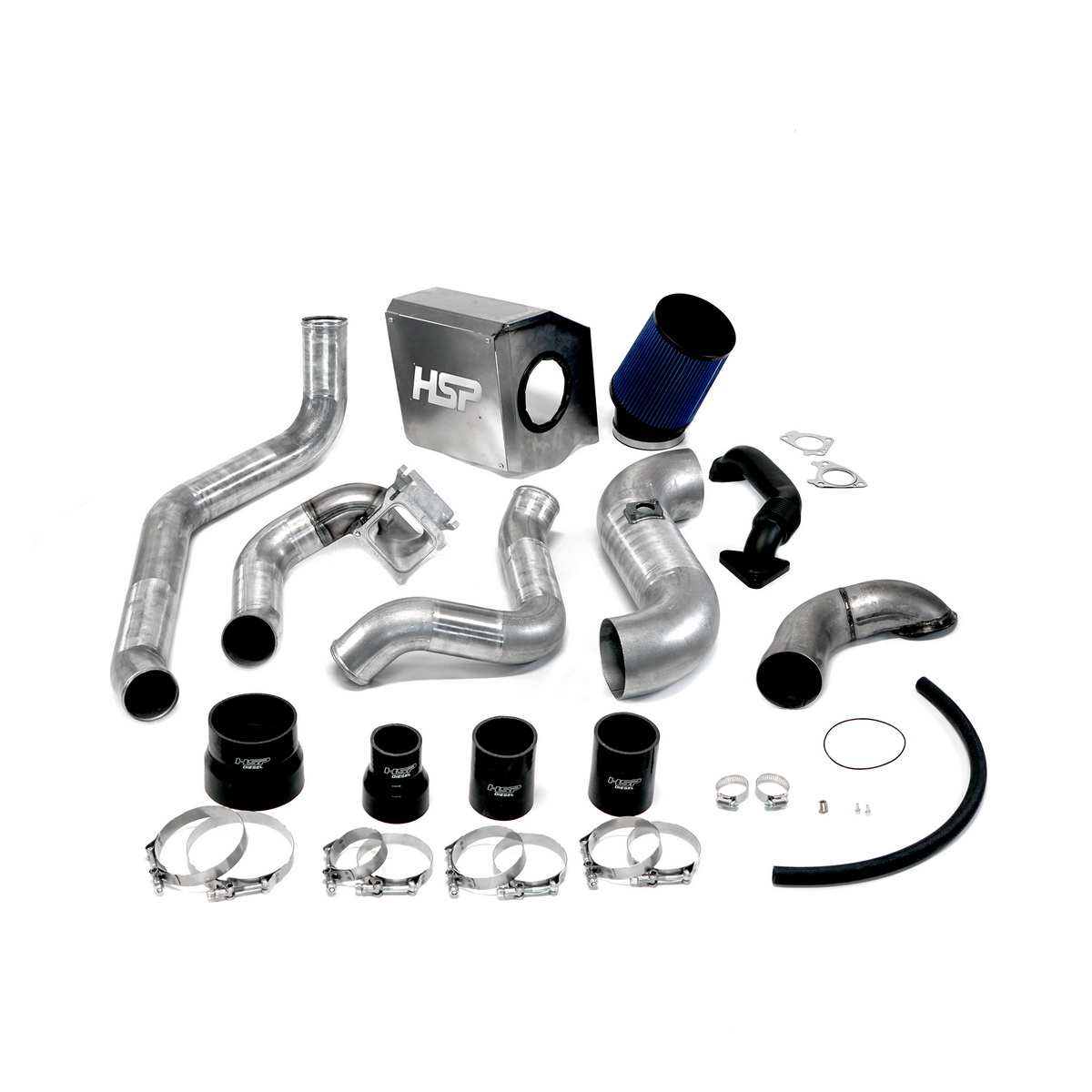

Included Components:


2x 3 inch x 4 inch Straight boot

5x 3 inch T-bolt Clamps

1x 2.25 inch - 3 inch Reducer Boot

1x 2.25 inch T-bolt Clamp

1x Bridge Neck O-Ring

2x Bridge Neck Stud

2x Bridge Neck 12-point Nut

2' of Heater hose

2x 5/8 inch worm Gear Clamp

1x 1/8 inch NPT Brass Plug

2x M4x.7x10mm Bolt

3x 10-32 x 3/8 inch Button Head Screw

4x 1/8 inch Aluminum Rivet

1x 4 inch - 4.5 inch Reducer Boot

1x 4 inch T-Bolt Clamp

1x 4.5 inch T-Bolt Clamp

1x 4.5 inch Filter

16 inch of Trim seal

1x Turbo Inlet O-Ring

1x Up-Pipe Gasket (Turbo Side)

1x Up-Pipe Gasket (Manifold Side)




Compatible with:

LLY: 04.5-05 VIN Code 2
How do People Know Vin Code? Engine code is dictated by the 8th character of the VIN number. The 10th character is the year of the truck.
