2004.5-2005 Chevrolet / GMC Intercooler Charge Pipe Bundle - HSP Diesel - 282-HSP

Looking to upgrade your intercooler piping? HSP has a bundle kit for you. Featuring 3-inch mandrel bent hot side and cold side tubes with our easy to install two-piece Y-bridge. Race-proven 5 layer silicone boots will ensure a great fit that won't let you down. The factory hot side intercooler tube is only 2.25 inch in diameter and has a 90-degree boot at the intercooler that is prone to failure

With this routing there is a possibility of the hot side intercooler tube rubbing on the power steering line, causing the line to rub a hole in the tube resulting in a boost leak. HSP's solution to this problem is to run the hot side tube directly into the intercooler resulting in lower temperatures, better airflow, and added clearance in tight places.

Ours bolted together two-piece Y-bridge will make installation a breeze and ensure a leak-free seal that won't leave you on the side of the road.

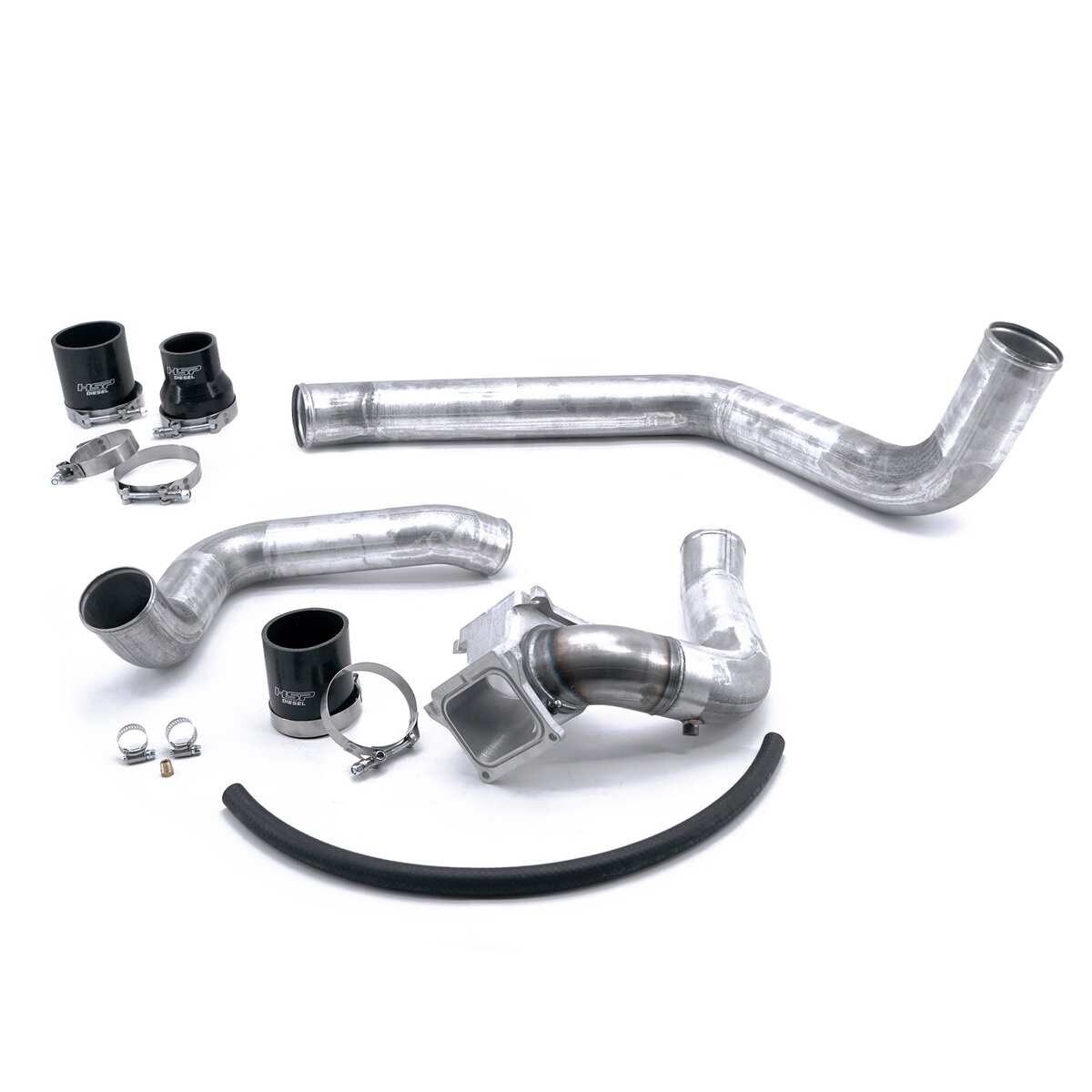

Included Components:


2x 3 inch x 4 inch Straight Boot

5x 3 inch T-bolt Clamp

1x 2.25 inch - 3 inch Reducer Boot

1x 2.25 inch T-Bolt Clamp

1x Bridge Neck O-Ring

2x Bridge Neck Stud

2x Bridge Neck 12-Point Nut

2' of 5/8 inch Heater Hose

2x 5/8 inch Worm Gear Clamp

1x 1/8 NPT Brass Plug


Compatible with:

LLY: 04.5-05 VIN Code 2
How do People Know Vin Code? Engine code is dictated by the 8th character of the VIN number. The 10th character is the year of the truck.
